Easy Install
Our wiring harnesses are designed for DIY, making installation easier than ever.
No Cutting, Splicing, or Crimping Required!
Plug in your lights, connect them to your switching system, and hit the trails!
Quick Shipping
Thanks to new equipment and more staff, we ship most harnesses in under a week!

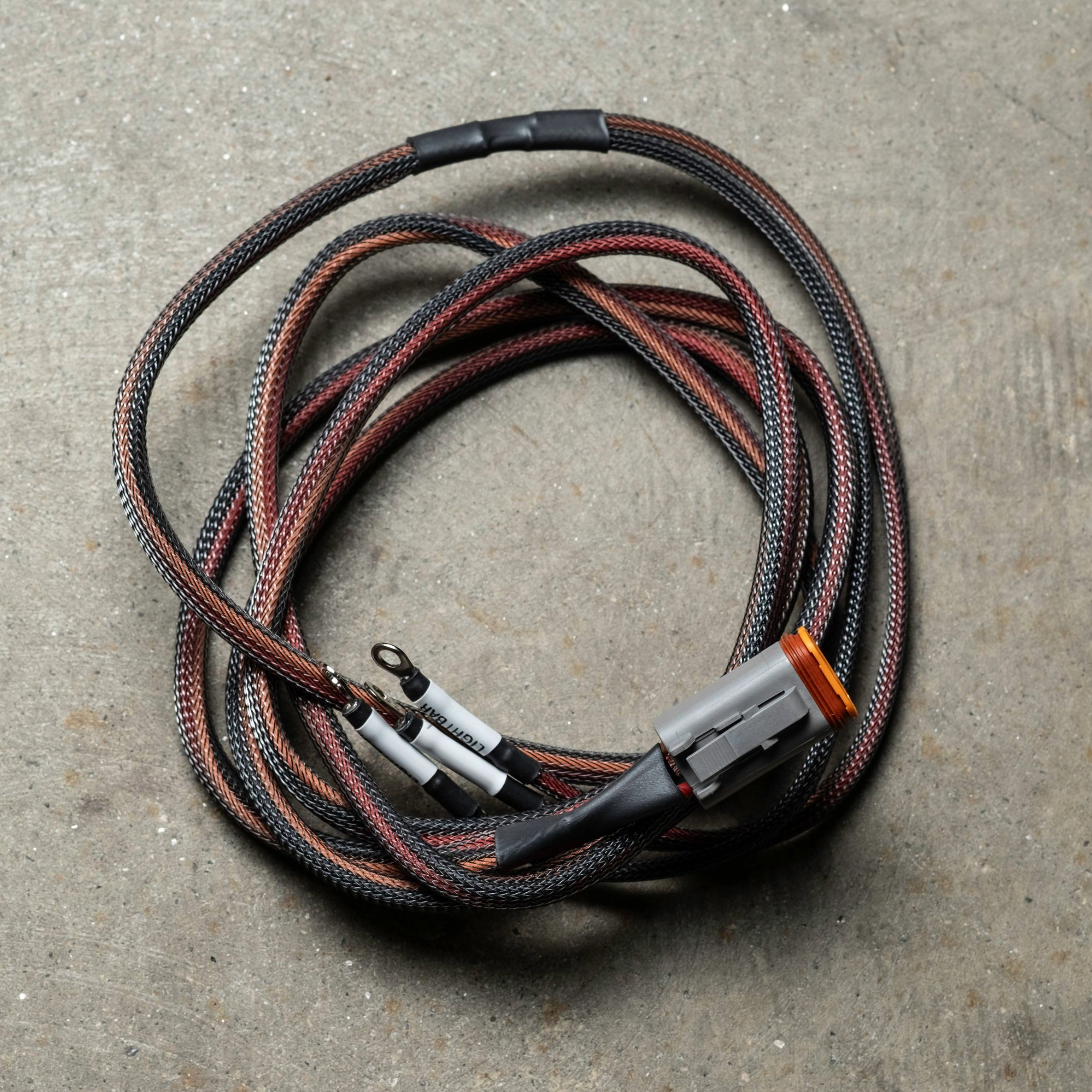

Plug-and-Play Wiring Harness for Full-Size Vehicles
Our harnesses are designed to be as DIY friendly as possible. Simply plug them into your lights, then connect them to your switching system.
Okay, that's a lie; you need a basic screwdriver for your switching system's terminals.
BUT, no crimping, splicing, cutting, or soldering required!
Our harnesses are designed around only the highest quality components on the market. We cut ZERO corners when building our harnesses, so they are ready for the harshest of conditions, trip after trip.
Built in the USA, our harnesses are made to the standards that your build deserves.
***UPON CHECKOUT PLEASE LIST MAKE/MODEL/YEAR AND LIGHT TYPE YOU ARE WIRING IN THE NOTES
These harnesses are for FULL-SIZE vehicles ONLY. Tundra, Sequoia, F150, Raptor Expedition, 1500, ETC.
We believe that clean wiring is safe wiring. Since we cannot wire every truck in the off-road industry, we are doing the next best thing.
Welcome to our new line of premade vehicle and application-specific wiring harnesses. Every harness will be labeled with printed heat shrink tubing for quick and easy identification, making self-service incredibly efficient. These harnesses are made of only the highest quality materials. They are meticulously designed and produced to work perfectly with your vehicle.
READ BEFORE ORDERING!
-
We rely on the information that you provide to manufacture your harness correctly. If you provide incorrect information, we will not be able to give you a refund or rebuild the harness.
-
These harnesses are designed to work with our Pre-Wired Switch-Pros, SPOD or Garmin units ONLY. The harnesses have a ring terminal termination that will work with the Garmin, Spod, and OUR Switch-Pros kits. In most cases, these harnesses work with Power Trays and Switch Pros Mount Tray systems.
-
Blaze Off-Road is not responsible for any mis-installation or over-cutting of harnesses if modified. If you choose to modify a harness, PLEASE measure twice and cut once, there will be no refunds on modified harnesses.
Customer is responsible for calculating the total amperage of their lights to make sure they will work with their switching system. We can help look into this for you, but we need all of the system information included in the notes at checkout; otherwise, your harness will ship designed to work with a normal #8 ring terminal switching system. For higher amperage bars (such as the OnX6), or larger pods (such as the LP series lights) we can build the harness with one of our high amp relay kits. You, the customer, are responsible for letting us know what switching system you will be using if you would like for us to advise you on amprage limits and relay requirements.
The harness will include a backlighting feature if your lights offer it. If your lights have low and high beam features harnesses WILL NOT offer the low beam feature. If you accidentally turn on both low and high beams at the same time it will fry the LP lights from Baja Designs, and can cause complications on other lights. Being that so few people have real reasons for using the low beam on trucks we do not offer the feature. These harnesses are designed to be used with a under hood mounted switching system such as the Garmin PowerSwitch.
Harnesses will be subject to a 50% cancelation fee once they have started production and cannot be canceled or returned once the order has shipped.
Blaze harnesses come with a limited lifetime warranty, subject to inspection, customer use case, and other factors.
Harnesses are made to order and can take 1-2 weeks.
Stock Vs Blaze Harnesses
The harnesses that came with your lights are bulky, unreliable, complex to use, and prone to failure. Blaze Off-Road harnesses are the opposite of that. Easy to install, no cutting, crimping, splicing, or soldering needed.
Stock
Blaze Off-Road
Braided Sheathing
USA-made Braided Sheathing for protecting your harness in the toughest of off-road conditions.
High Quality Connectors
Direct from the manufacturer connectors means the highest quality connectors possible.

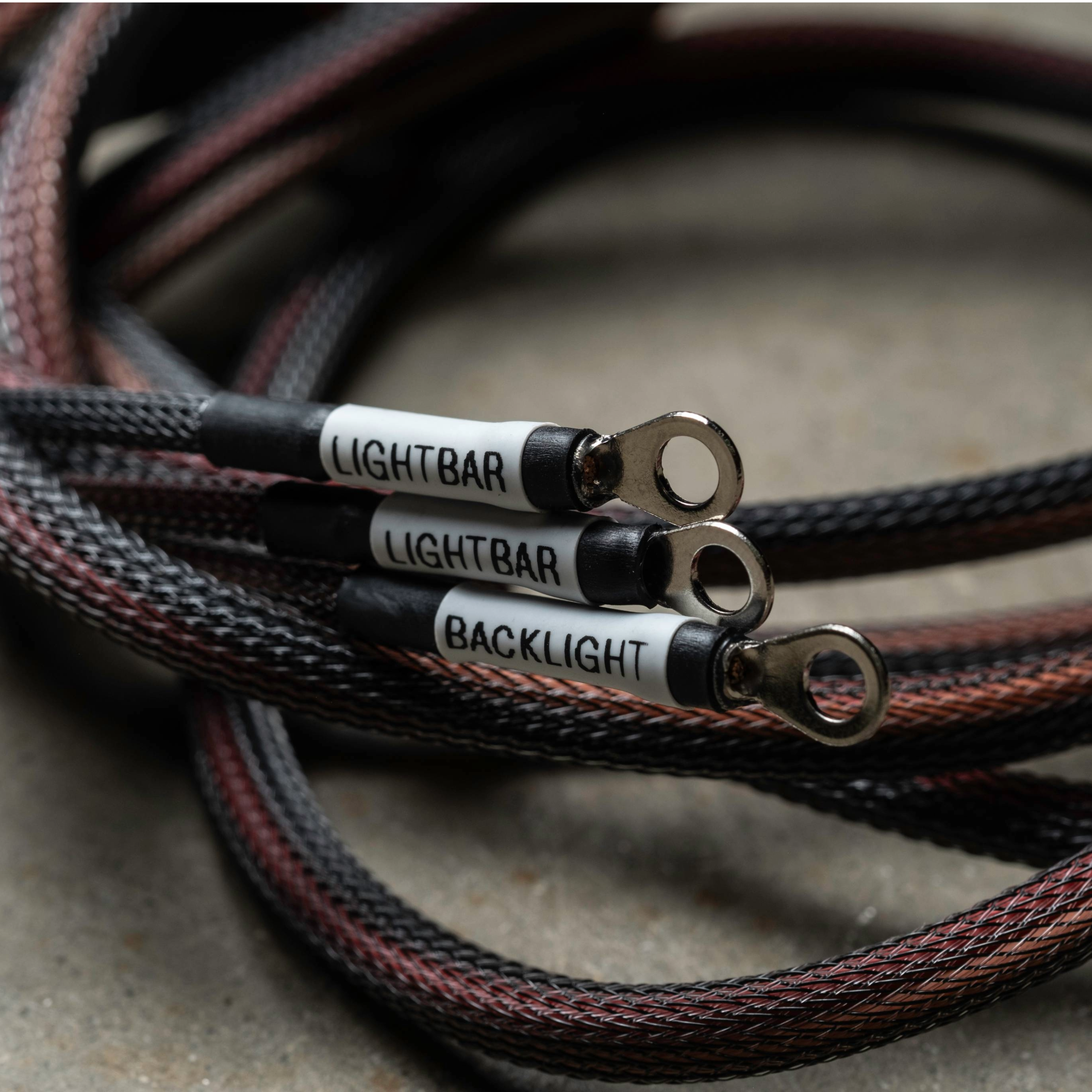

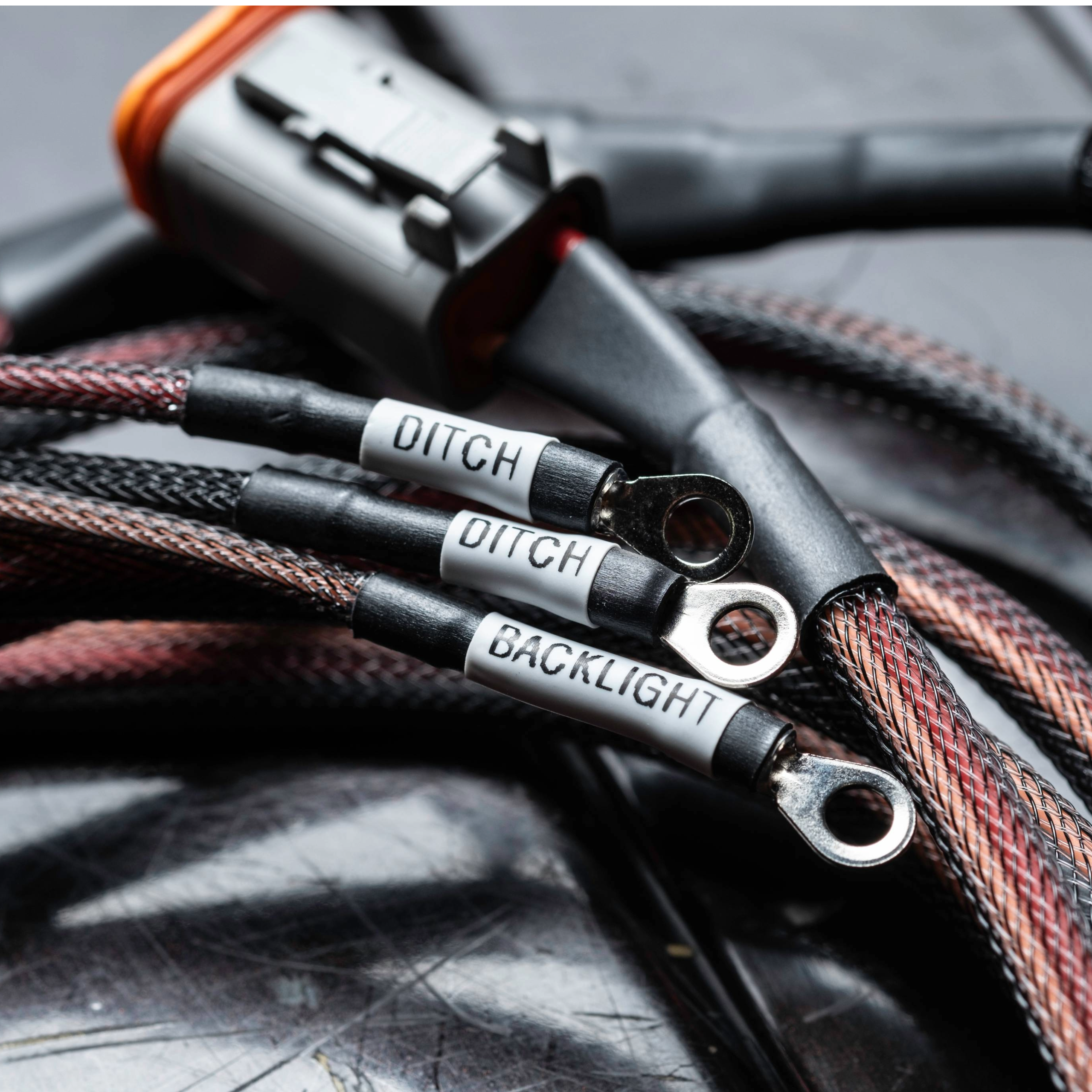

Labeled Heat Shrink
Labeled hear shrink makes install, and future service easier than ever.
Glue Lined Heatshrink
Sealed, glue-lined heat shrink means your harness and sheathing stay put. No sliding around or coming undone with our harnesses.
What Customers are saying
Most Common Harness Questions
I know NOTHING about wiring, can I still use these harnesses?
Absolutely, these harnesses are designed for customers just like you. You do not need to know anything about wiring at all to install these harnesses. They are designed to be as easy as possible, showing up ready to plug and play.
What Connector do I have?
If you need help identifying your connector please see the last photo in the product photos shown, or reach out to us!
Common Connectors:

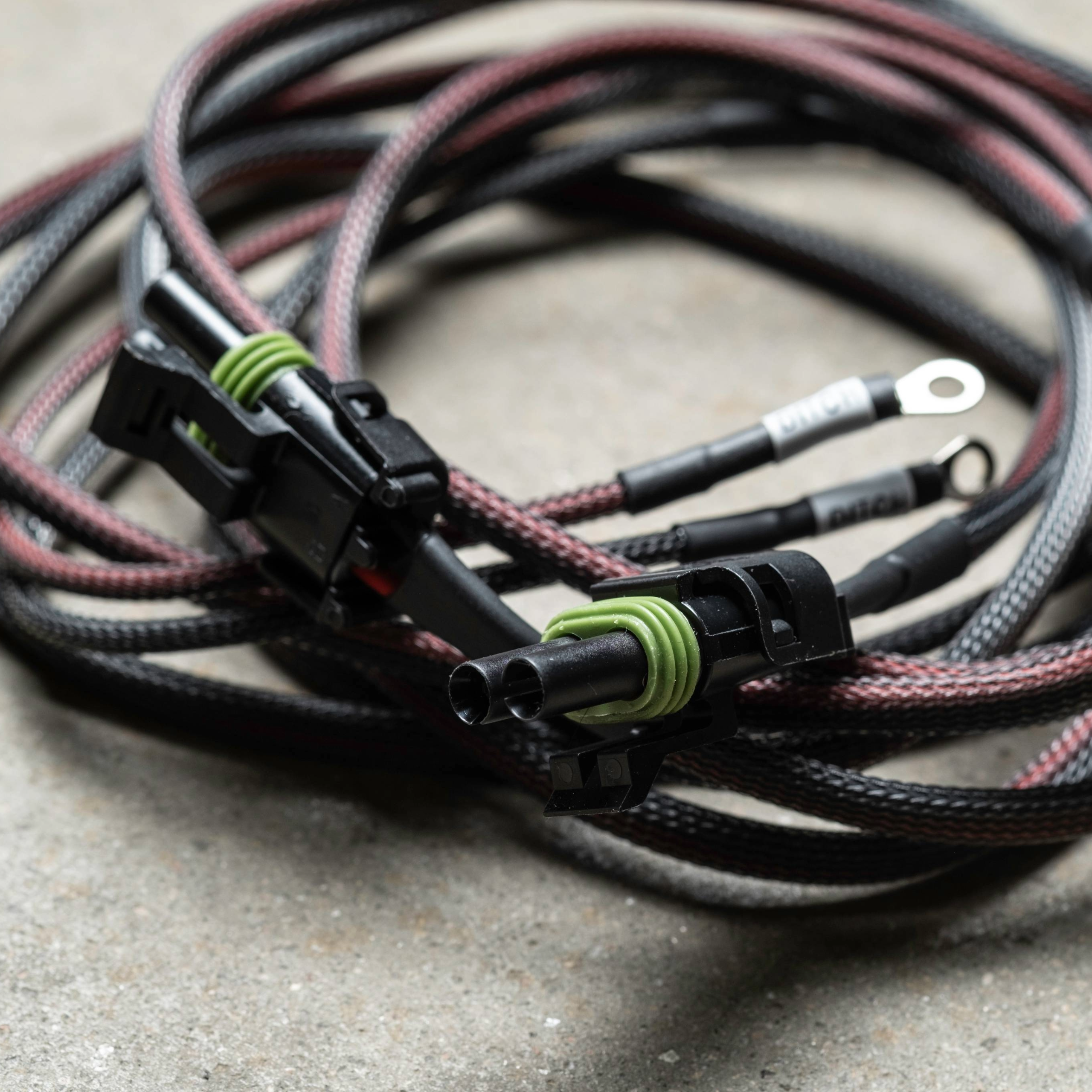

Baja Designs Weather Pack 2-pin:
- S1 Pods
- S2 Pods
- Squadron Pods
Baja Designs Weather Pack 3-pin:
- XL Pods
- S8 Lightbars
- OnX6 Lightbars

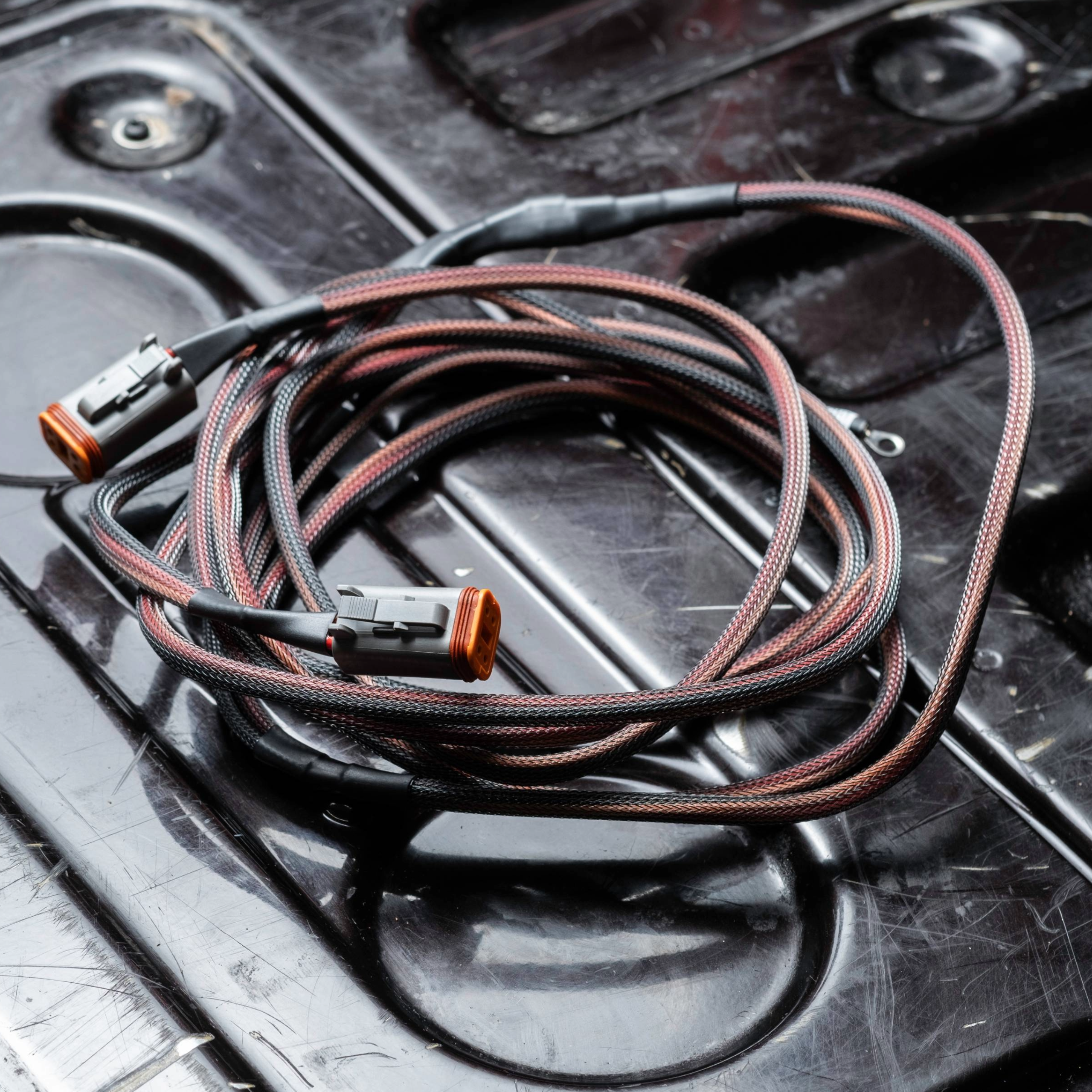

DT 2-Pin Connectors:
- Morimoto Pods
- Diode Dynamics Stage Series Light Bars
- Diode Dynamics Non-Backlit Pods (older)
- Rigid Non-Backlit Pods
DT 3-Pin Connectors:
- KC Backlit Pods
DT 4-Pin Connectors:
- Baja Designs LP Series Lights
- Diode Dynamics Backlit Pods
- Diode Dynamics New Generation Light bar
- Diode Dynamics SS5 Sport Light bar
DTP Connectors are another common connector for higher amperage bars such as the Diode Dynamics SS5 pro bar. If your connector resembles a DT series connector but is larger, this may be DTP. Reach out to us for a custom harness with this connector and we can still get you taken care of!
*This list is not comprehensive, and we cannot live track changes made by manufactures on their connector type, if you are unsure of your connector type please send us an email!*
Do I need any special tools?
If you are wiring the harness to a switching system or terminal block setup, no, you do not need any more than a Phillips head screwdriver in the vast majority of cases!
Do I need to cut or crimp any wires?
No! Our harnesses arrive 100% ready to plug and play. Simply plug the connectors into the lights, route the wires, and then connect the ring terminals to your switching system!
What if I have upfitter switches, and not a switching system?
Easy, we make harnesses for exactly that as well! Let us know you don't need the ring terminals, and we will build the harness for your upfitter switches!
