Easy Install
Our wiring harnesses are designed for DIY, making installation easier than ever.
No Cutting, Splicing, or Crimping Required!
Plug in your lights, connect them to your switching system, and hit the trails!
Quick Shipping
Thanks to new equipment and more staff, we ship most harnesses in under a week!
Backbone Front Light Bar Harness
Our harnesses are designed to be as DIY friendly as possible. Simply plug them into your lights, then connect them to your switching system.
Okay, that's a lie; you need a basic screwdriver for your switching system's terminals.
BUT, no crimping, splicing, cutting, or soldering required!
Our harnesses are designed around only the highest quality components on the market. We cut ZERO corners when building our harnesses, so they are ready for the harshest of conditions, trip after trip.

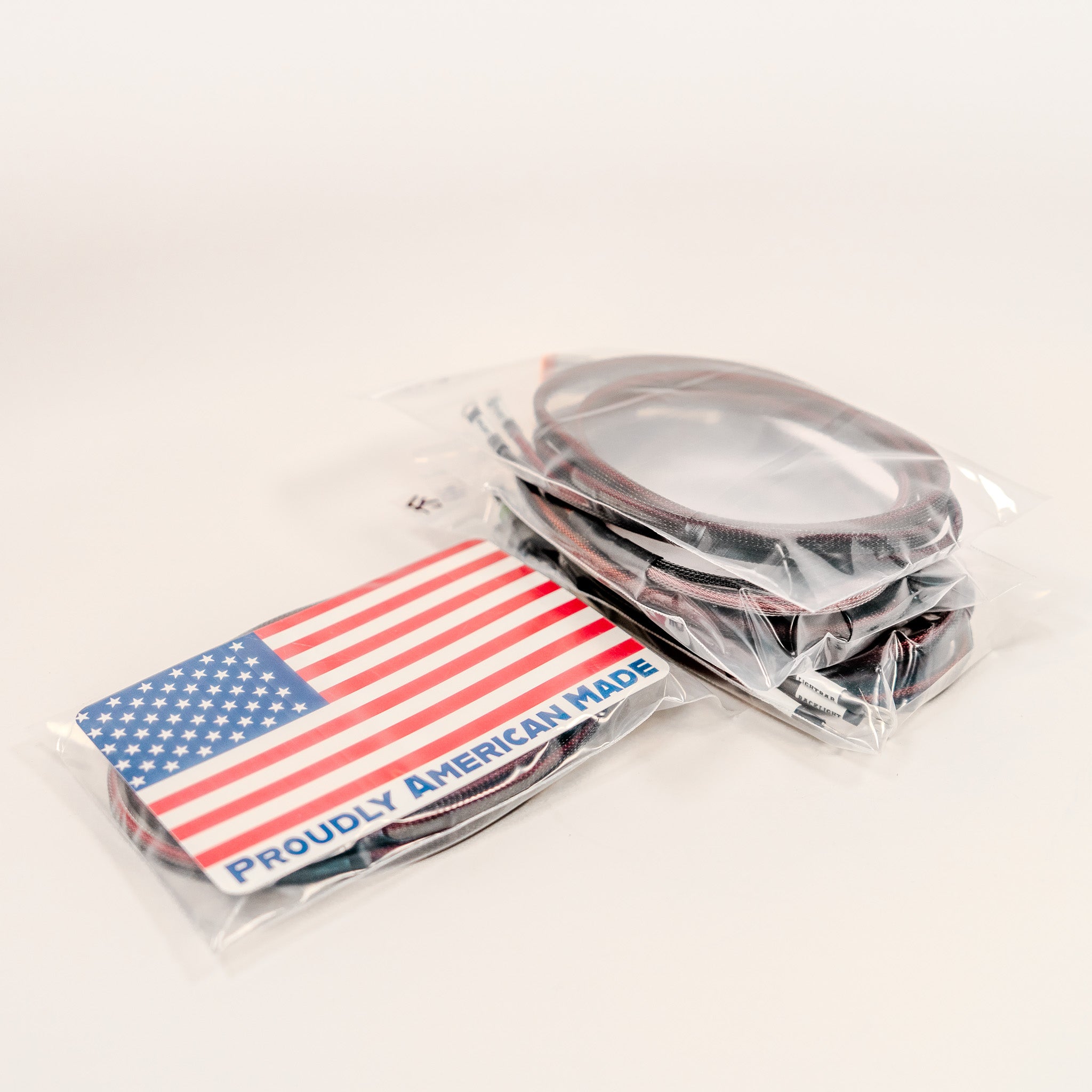

Built in the USA, our harnesses are made to the standards that your build deserves.

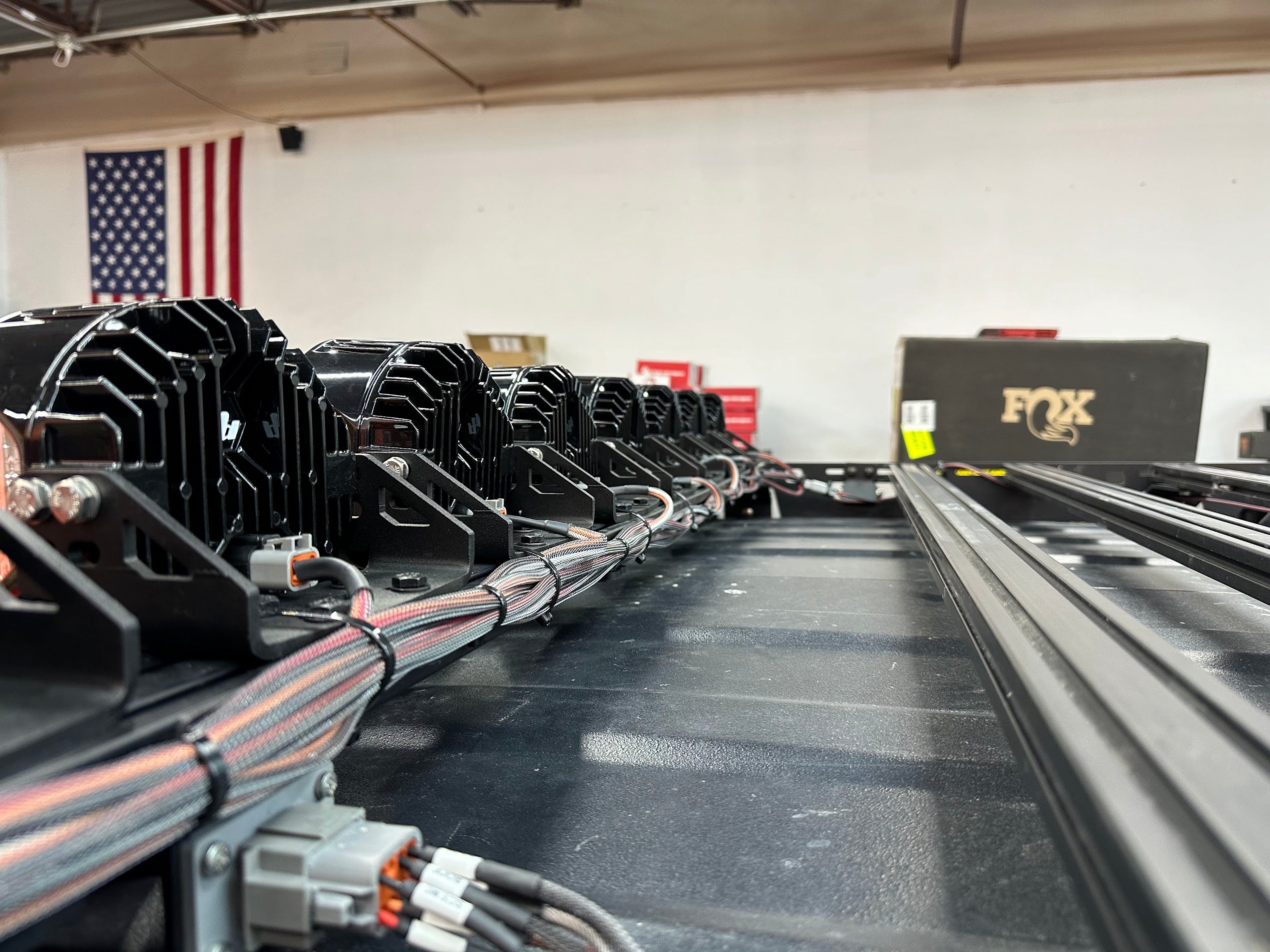

This harness is designed to work with our backbone wiring system to wire in your light bar! Keep wiring simple, clean, and reliable with the Blaze Off-Road backbone system.
Please select your light plug based on what you need, and be aware that some Baja Designs OnX6 light bars have two plugs and will need two harnesses, also using up two of your power plugs on the backbone harness.
This harness is designed to work with the Blaze Off-Road BackBone roof rack wiring system, and you will need a BackBone harness to use this harness. This is not a stand-alone harness.
Please keep in mind that the Diode SS5 pro bar cannot work with the backbone harness kit.
Harnesses are made to order and can take 3-5 weeks in some cases.
Stock Vs Blaze Harnesses
The harnesses that came with your lights are bulky, unreliable, complex to use, and prone to failure. Blaze Off-Road harnesses are the opposite of that. Easy to install, no cutting, crimping, splicing, or soldering needed.

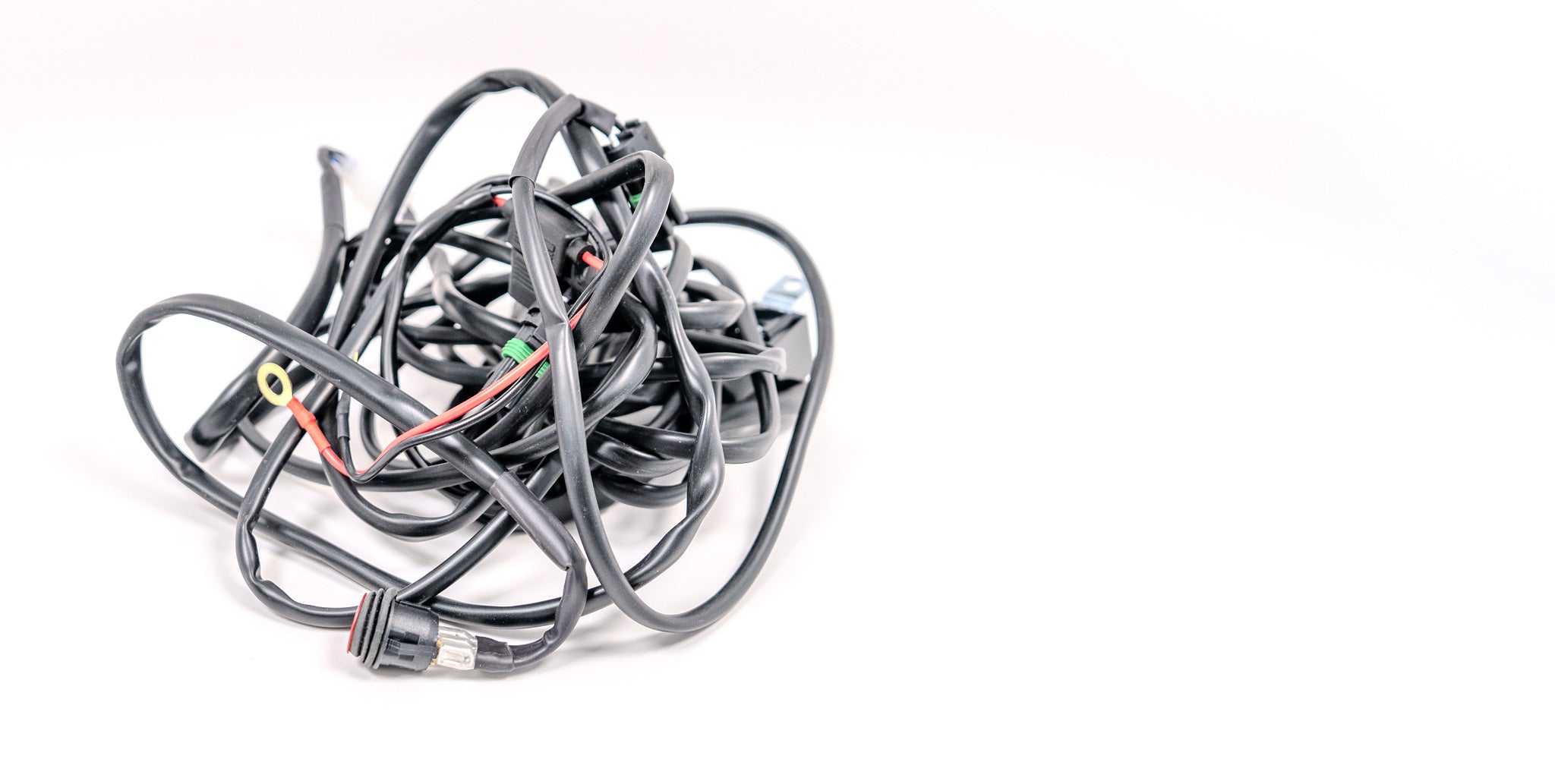

Stock

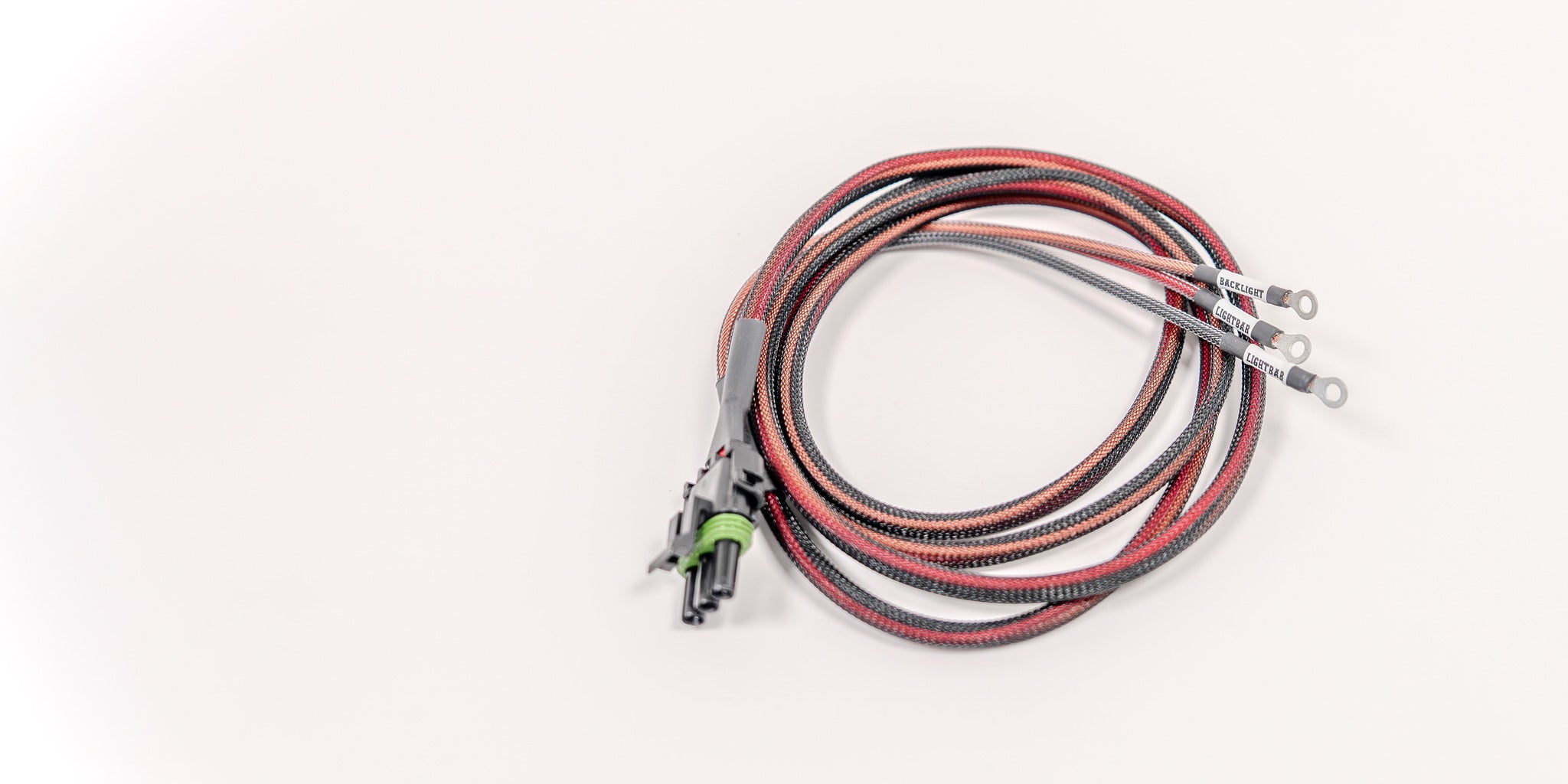

Blaze Off-Road

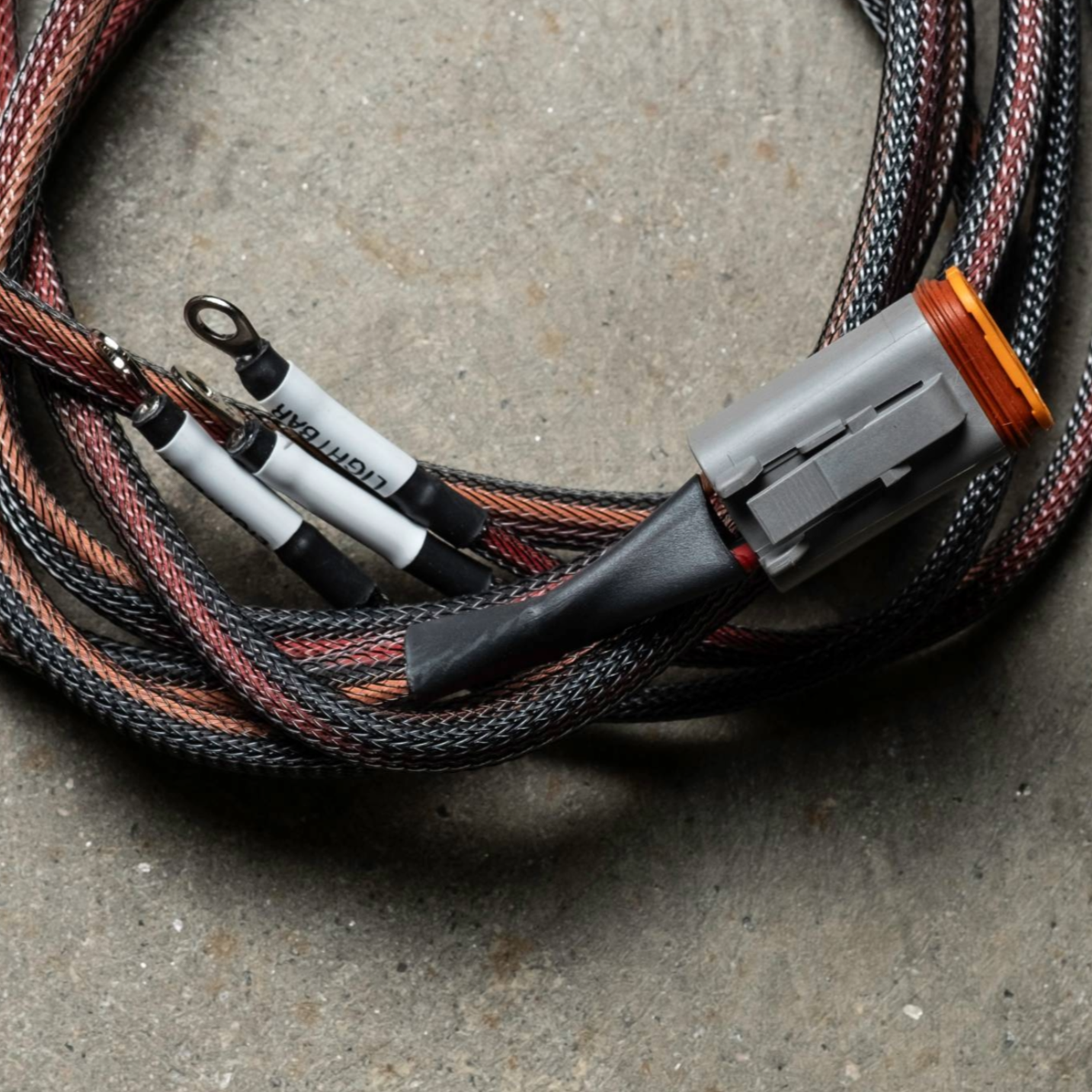

Braided Sheathing
USA-made Braided Sheathing for protecting your harness in the toughest of off-road conditions.
High Quality Connectors
Direct from the manufacturer connectors means the highest quality connectors possible.

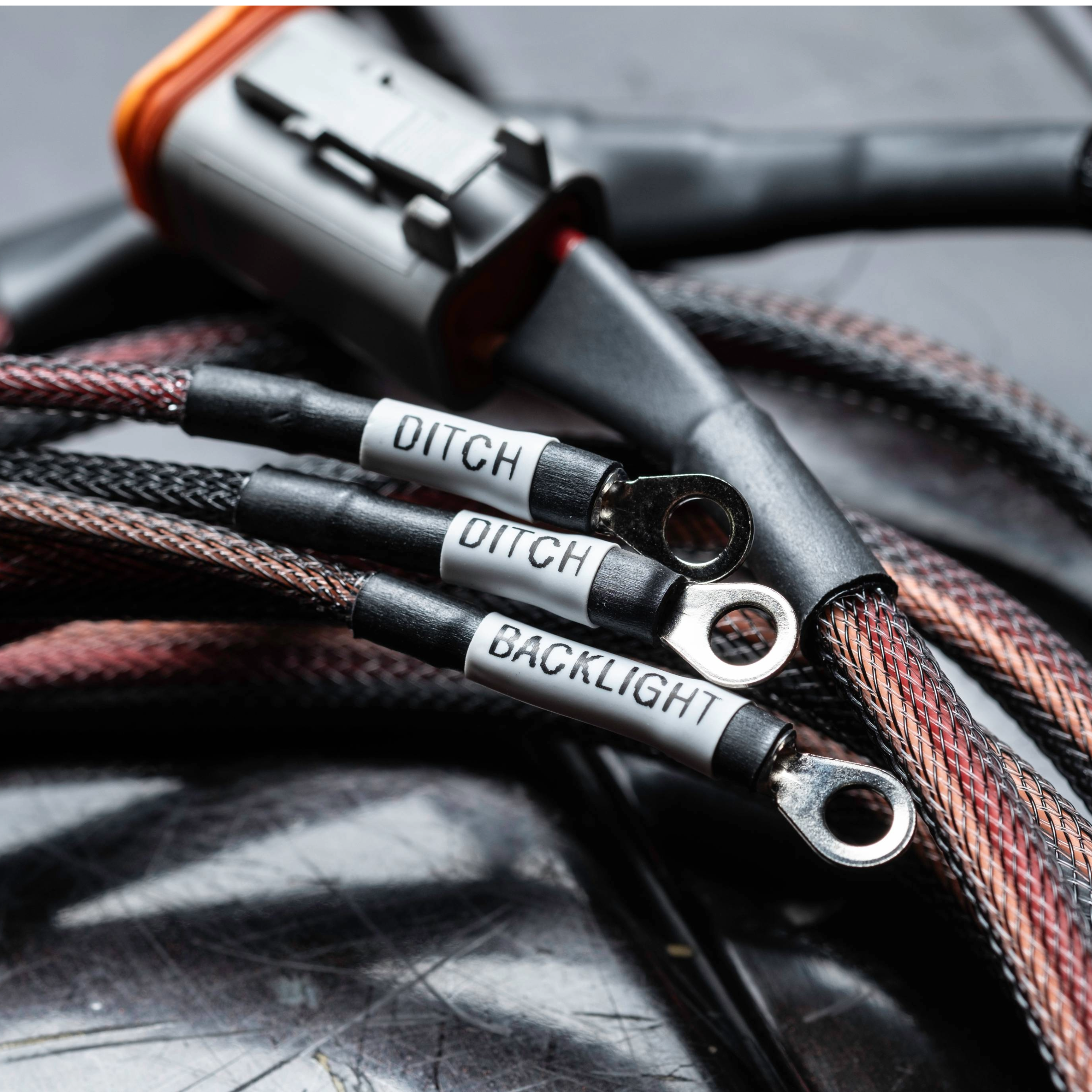

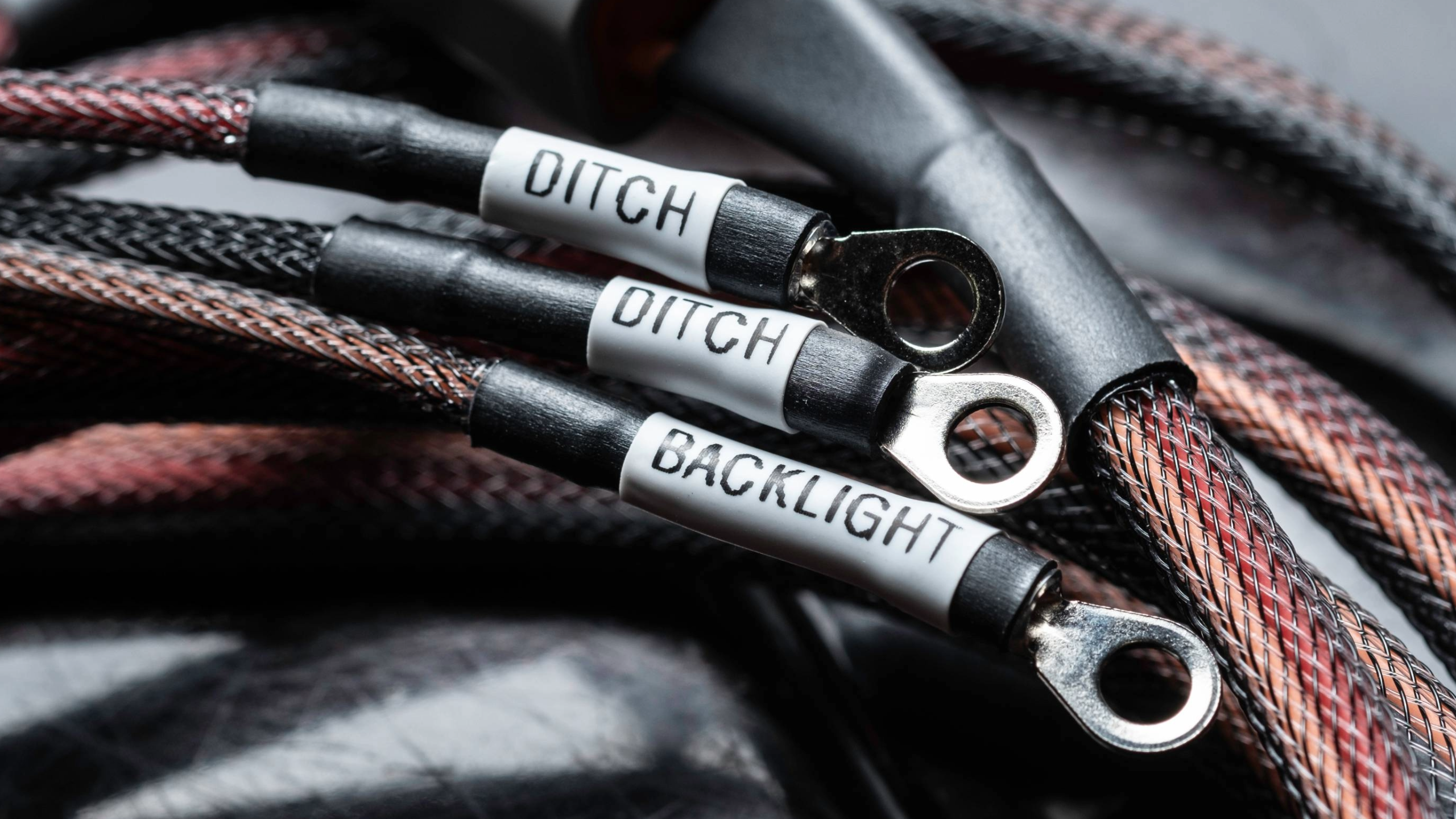

Labeled Heat Shrink
Labeled hear shrink makes install, and future service easier than ever.
Glue Lined Heatshrink
Sealed, glue-lined heat shrink means your harness and sheathing stay put. No sliding around or coming undone with our harnesses.
What Customers are saying
Most Common Harness Questions
I know NOTHING about wiring, can I still use these harnesses?
Absolutely, these harnesses are designed for customers just like you. You do not need to know anything about wiring at all to install these harnesses. They are designed to be as easy as possible, showing up ready to plug and play.

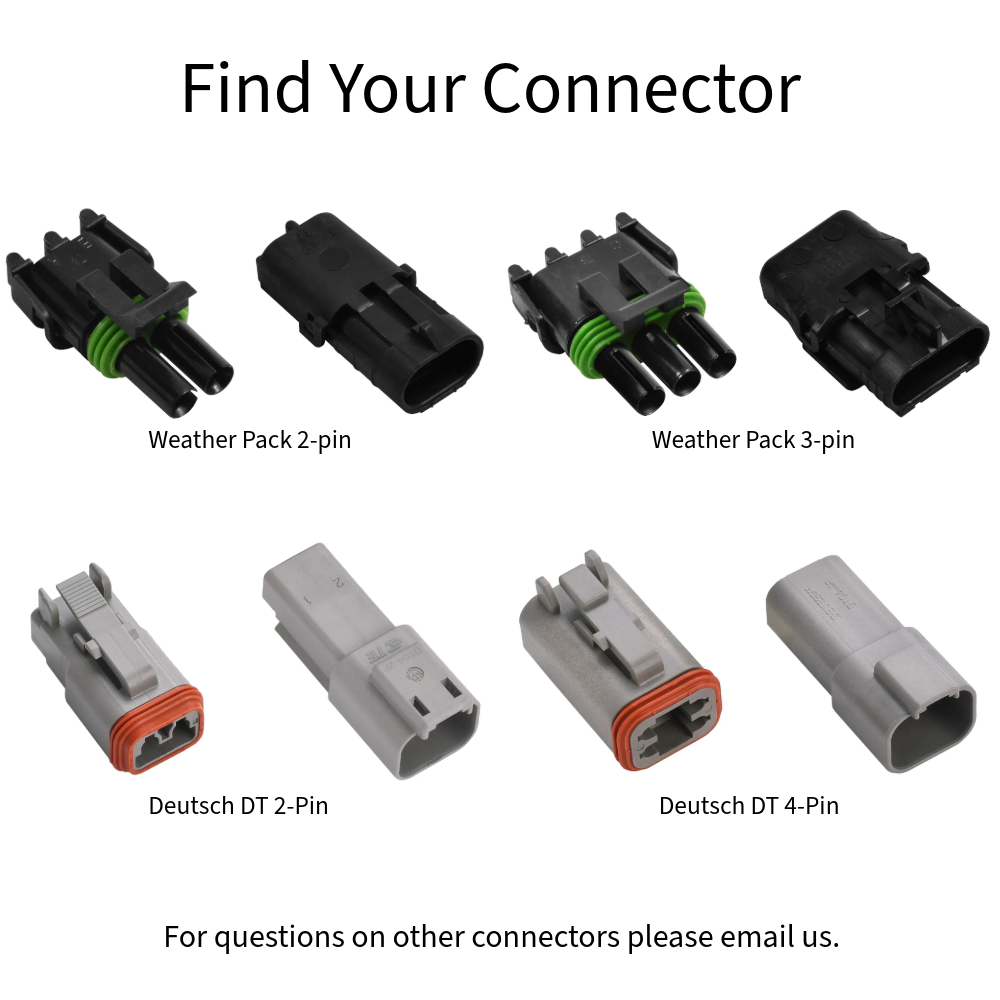

What Connector do I have?
If you need help identifying your connector please see the last photo in the product photos shown, or reach out to us!
Common Connectors:
Baja Designs Weather Pack 2-pin:
- S1 Pods
- S2 Pods
- Squadron Pods
Baja Designs Weather Pack 3-pin:
- XL Pods
- S8 Lightbars
- OnX6 Lightbars
DT 2-Pin Connectors:
- Morimoto Pods
- Diode Dynamics Stage Series Light Bars
- Diode Dynamics Non-Backlit Pods (older)
- Rigid Non-Backlit Pods
DT 3-Pin Connectors:
- KC Backlit Pods
DT 4-Pin Connectors:
- Baja Designs LP Series Lights
- Diode Dynamics Backlit Pods
- Diode Dynamics New Generation Light bar
- Diode Dynamics SS5 Sport Light bar
DTP Connectors are another common connector for higher amperage bars such as the Diode Dynamics SS5 pro bar. If your connector resembles a DT series connector but is larger, this may be DTP. Reach out to us for a custom harness with this connector and we can still get you taken care of!
*This list is not comprehensive, and we cannot live track changes made by manufactures on their connector type, if you are unsure of your connector type please send us an email!*
Do I need any special tools?
If you are wiring the harness to a switching system or terminal block setup, no, you do not need any more than a Phillips head screwdriver in the vast majority of cases!
Do I need to cut or crimp any wires?
No! Our harnesses arrive 100% ready to plug and play. Simply plug the connectors into the lights, route the wires, and then connect the ring terminals to your switching system!
What if I have upfitter switches, and not a switching system?
Easy, we make harnesses for exactly that as well! Let us know you don't need the ring terminals, and we will build the harness for your upfitter switches!
