Blaze Off-Road  |  SKU: 01020901

Back Bone Wiring Harness - Roof Rack

$189.99

Vehicle Size
Pin Option
Ground Option

Picture this:

You have a super sick offroad rig, but you need some storage, and defiantly more light for your adventures. So you grab yourself a roof rack - awesome! Now lets throw some lights on it - Perfect, looks sick....now the dreaded part. Wiring.

"Okay, so I guess just cut up these harnesses that came with the lights and run them down the windshield is the best bet? Maybe use those cool wire hiders from Baja Designs? But with the light bar, scene lighting and chase lights that's too much wire, so now I need one on each side of the windshield."

Now after all of your hard work, you still end up with oversized and over-complicated wire bundles making this sick rig look way crappier.

Enter the Blaze Off-Road BACKBONE Roof Rack Harness.

Our harness solves many problems all in one swing. This one-piece BACKBONE harness can be combined with a number of our pigtail options to wire up your entire roof racks lighting setup with a simple to-install, American-made high-quality harness. Simply select whether you have a mid-size or full-size vehicle and we will take it from there.

Features:

  • American Made In Denver Colorado
  • Highest quality components on the market
    • TE Connectivity
    • Raychem
    • Molex
    • Tech-Flex
  • Fully weather sealed
  • Flange mount roof connector to ensure solid and reliable mounting
  • Modular design allows for you to swap out pigtails for a variety of lights

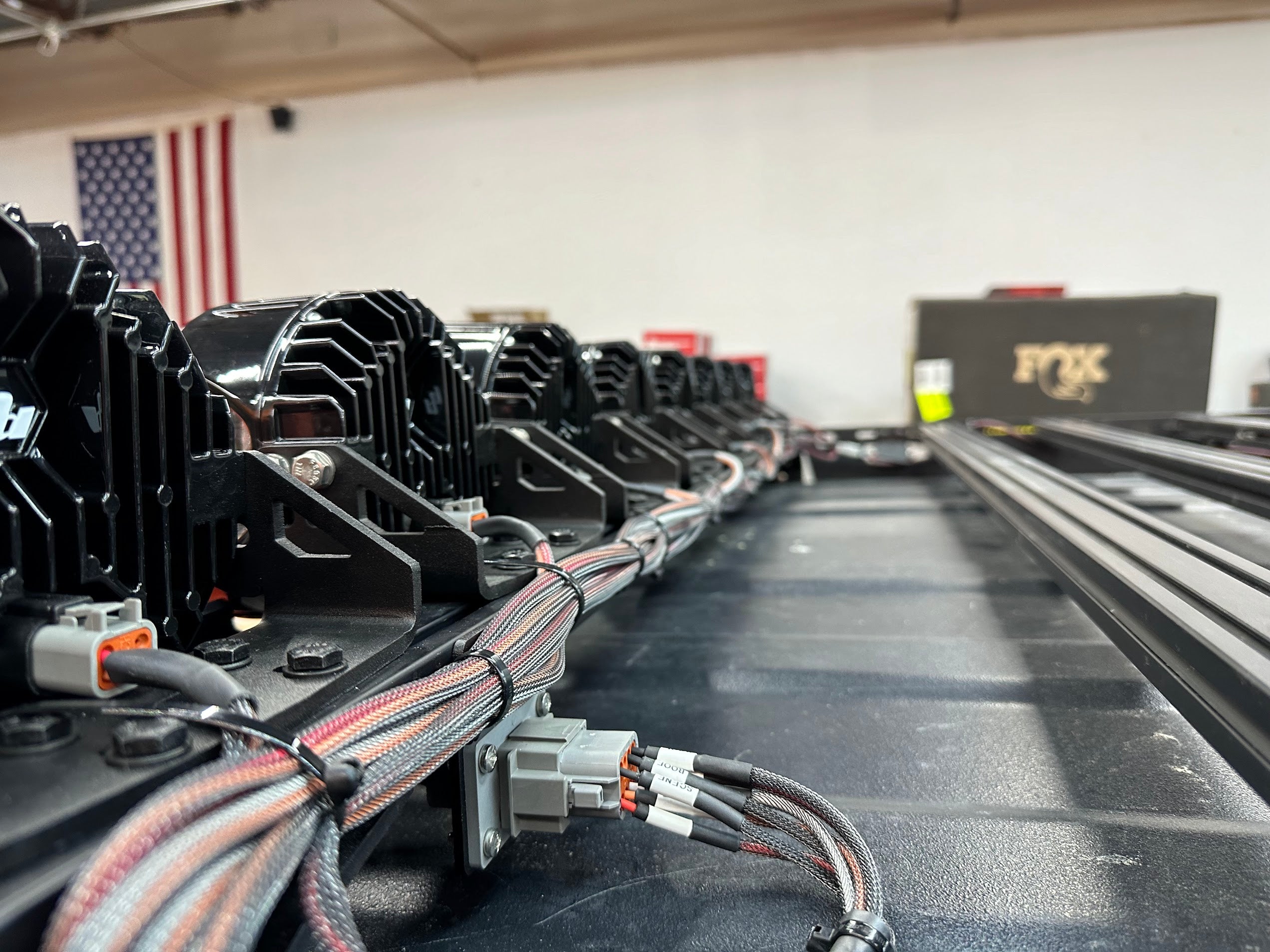

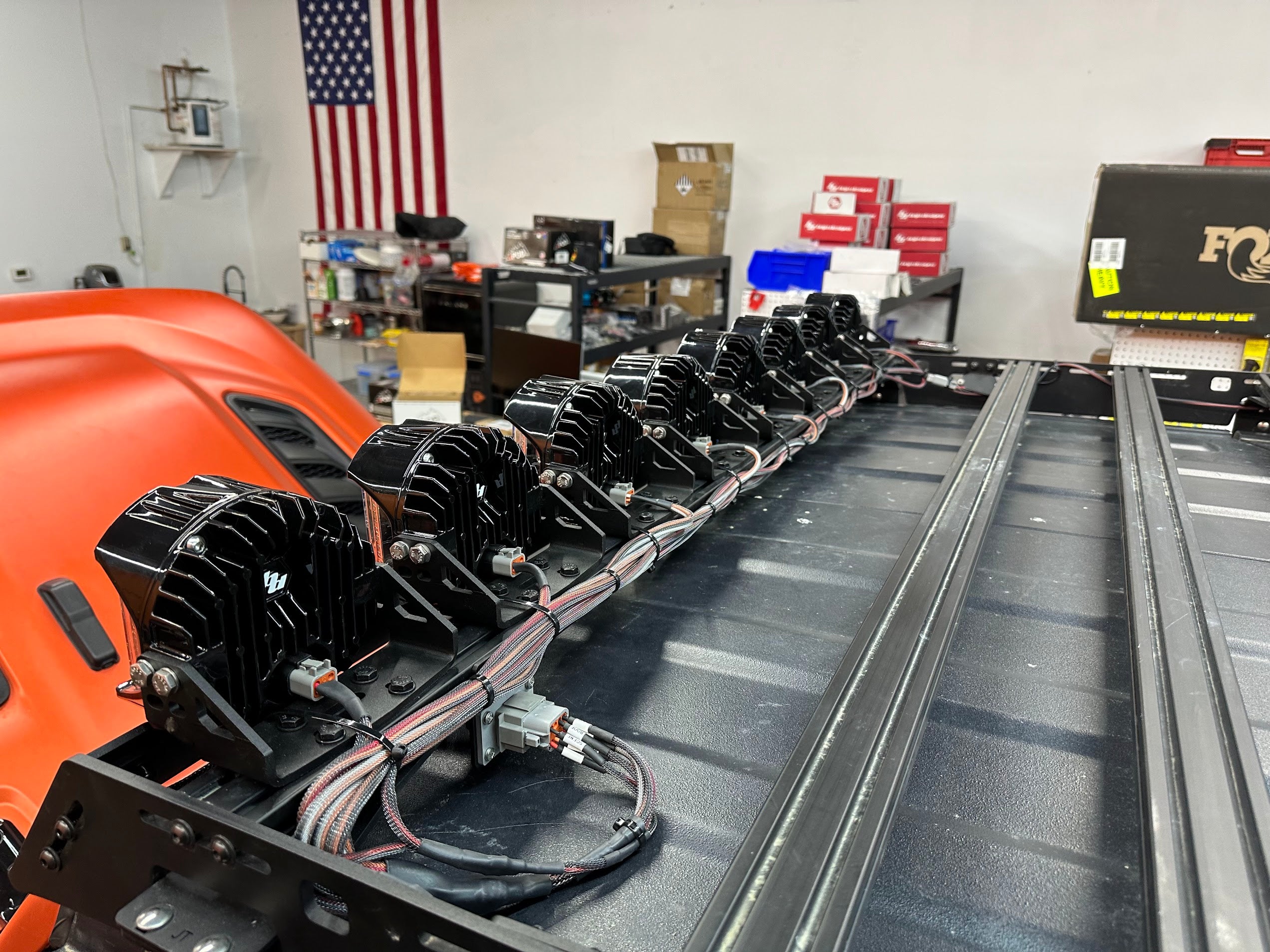

  • Power all needed accessories on your roof rack via your existing switching system by simply adding the pigtails that you need for your specific lights
    • Front Light Bar
    • Front Bar Scene Lighting
    • Side Scene Lighting Pods
    • Rear Chase Lights

Ground Options:

  • Single ground point - best for switching systems like ours with a ground bar.
  • Individual ground points - Best for Spod systems with built-in grounds.

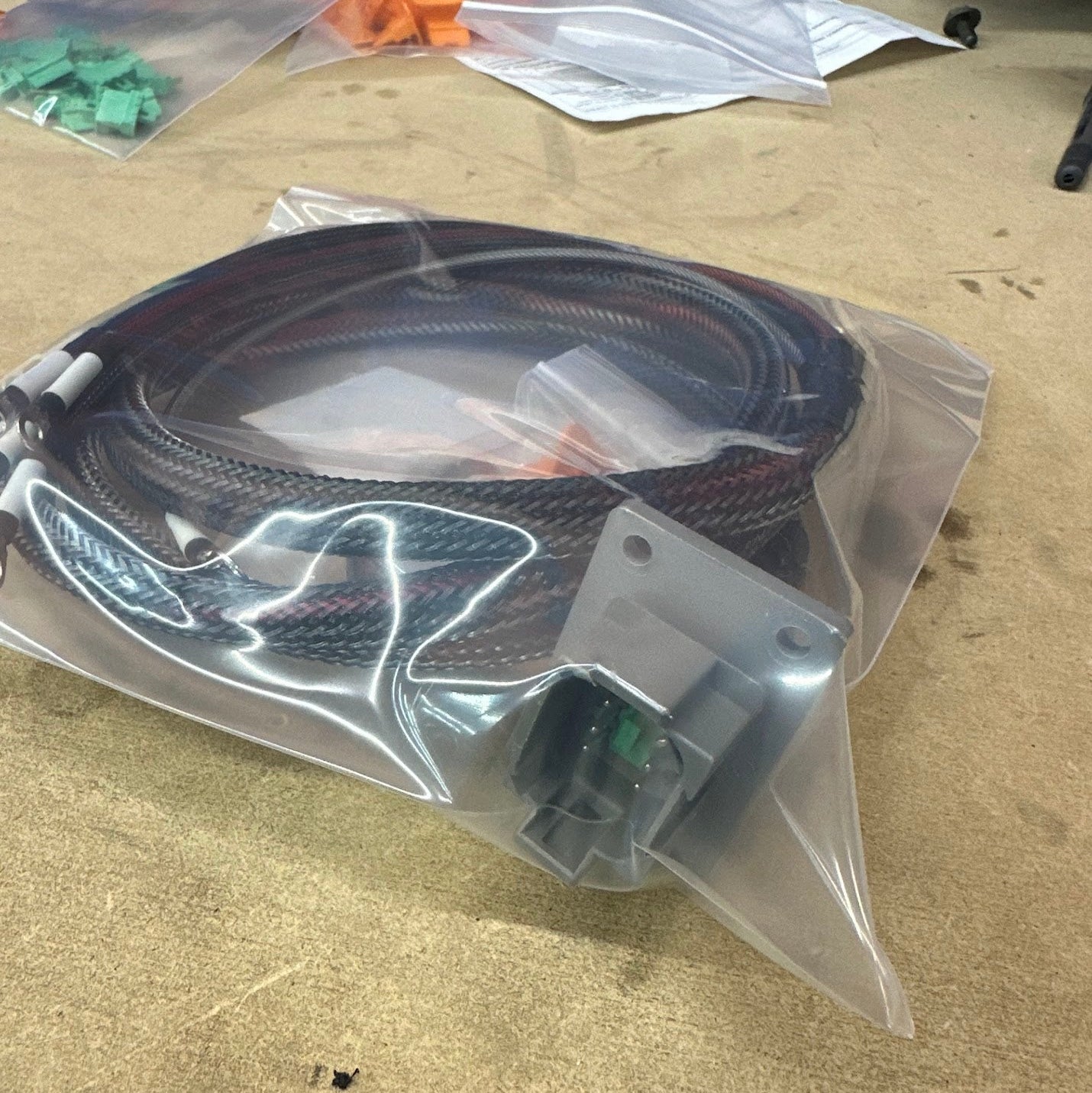

Kit Includes:

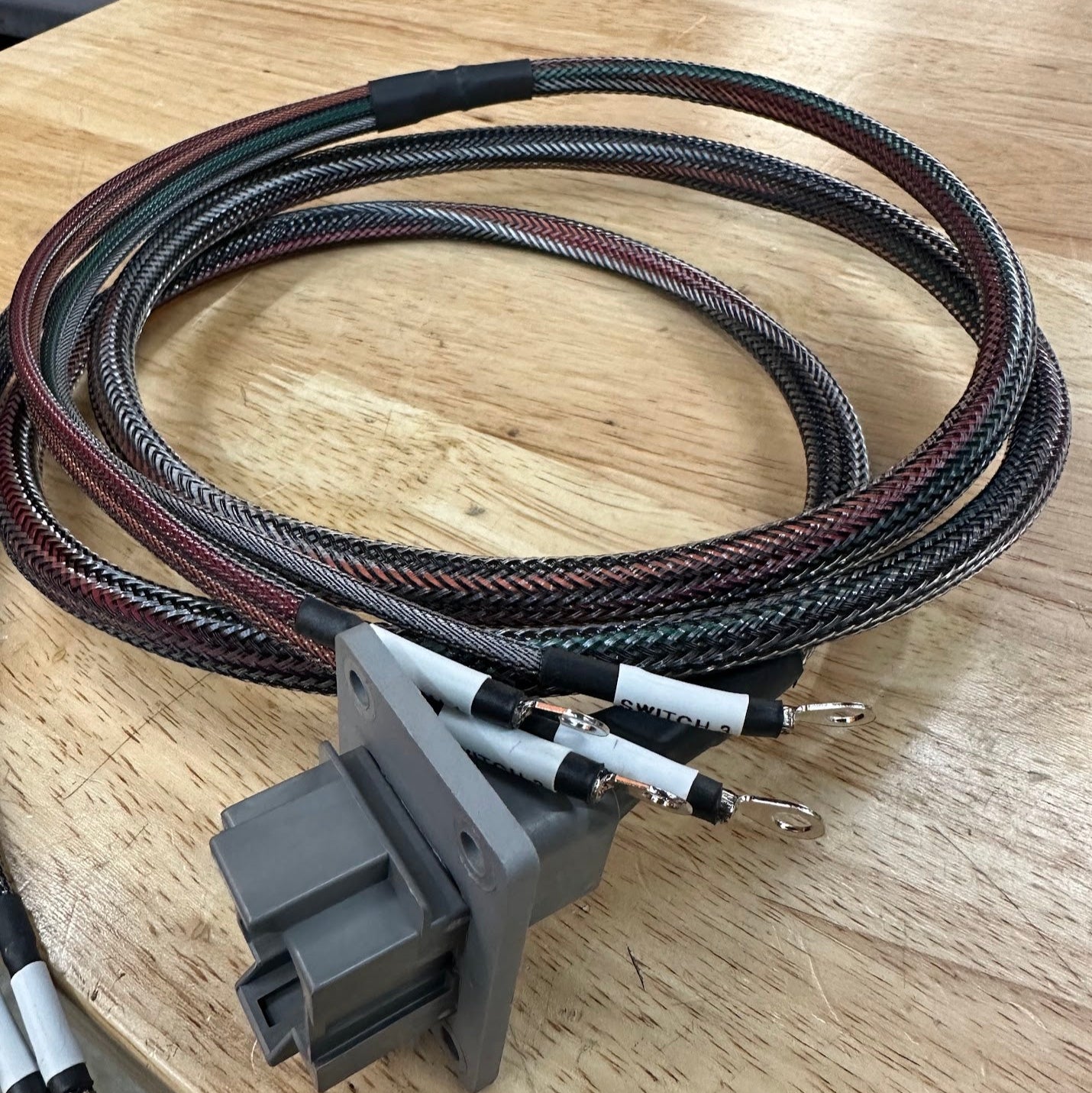

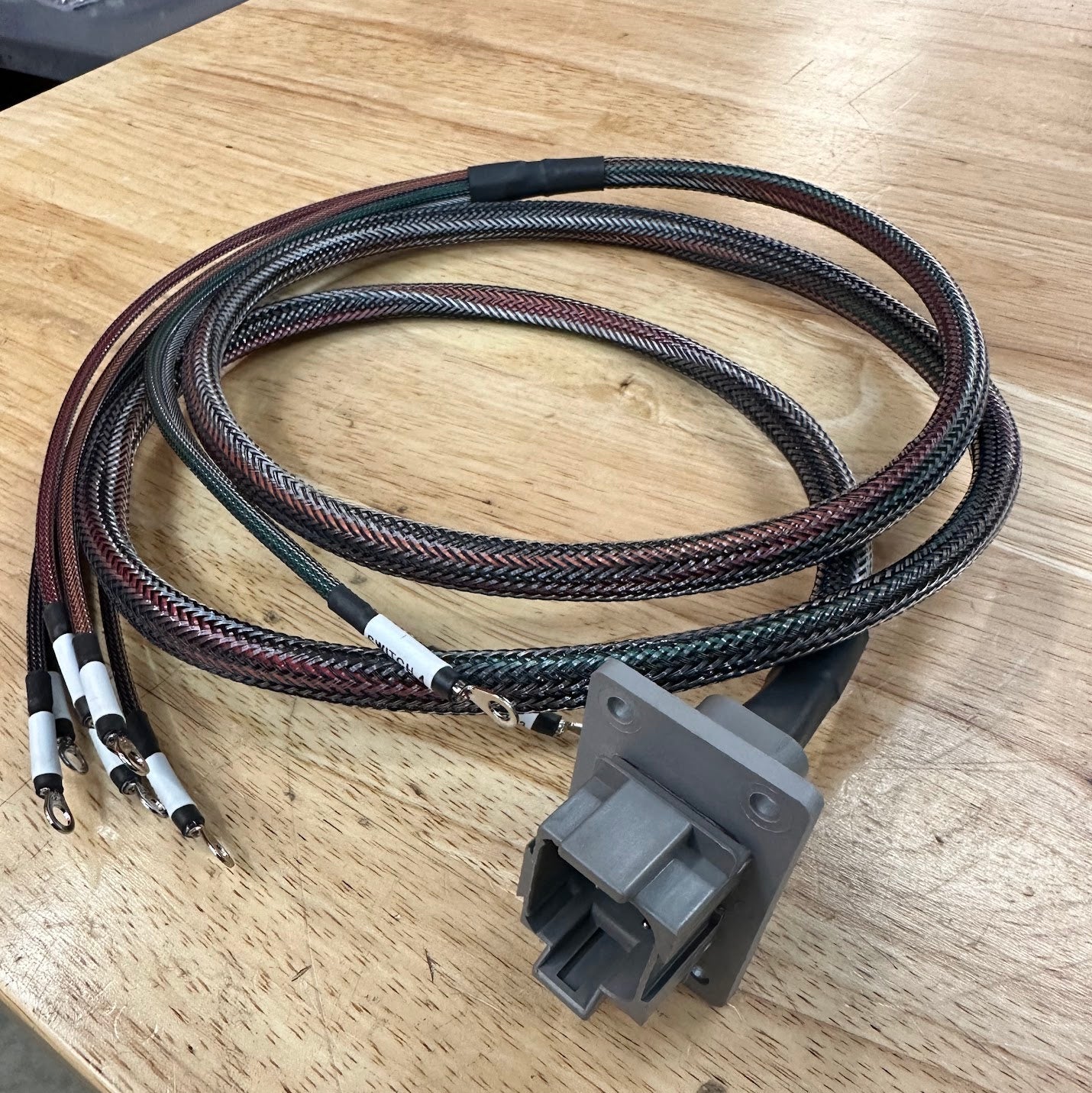

  • Blaze BACKBONE Harness
  • Mounting Bracket For Roof Rack (hardware may be needed for your specific rack)

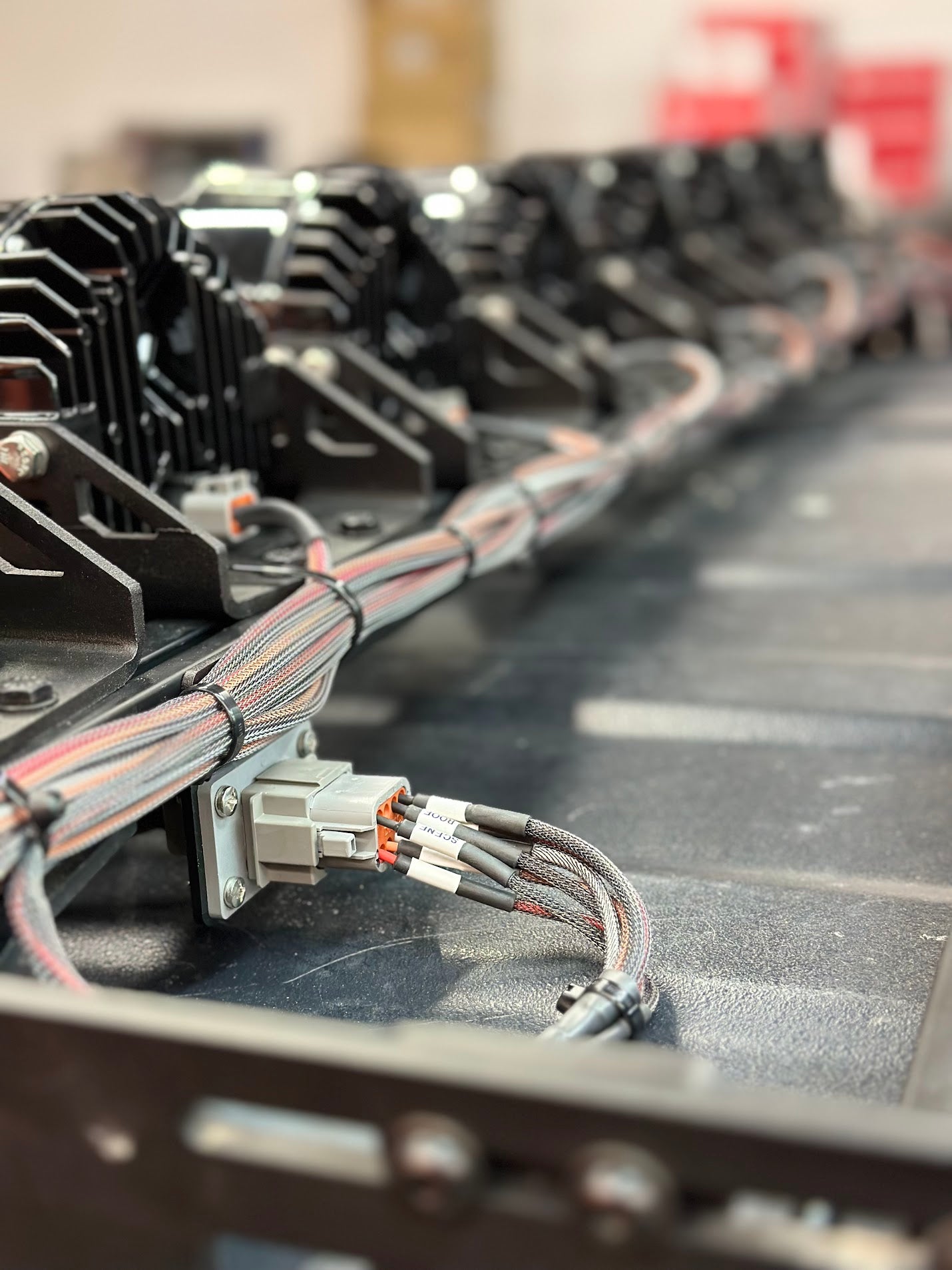

  • Modular Harness Side Plug - For connecting the not included lighting pigtails

Truck Size:

  • Mid-size trucks would be Tacoma, Ranger, Colorado, and similar.
  • Full-side trucks would be F150, Tundra, Super-Duty, 1500, and similar.
  • Mid-size SUV would be 4-Runner, Bronco, Rav-4, and similar.
  • Full-size SUV would be Sequoia, Expedition, and for wiring purposes Jeeps.



Currently, this product is 4-6 weeks out.



Harnesses will be subject to a 50% cancelation fee once they have started production, and cannot be canceled or returned once the order has shipped.

Blaze harnesses come with a limited lifetime warranty, subject to inspection, customer use case, and other factors.
