Blue Sea Systems  |  SKU: 5045

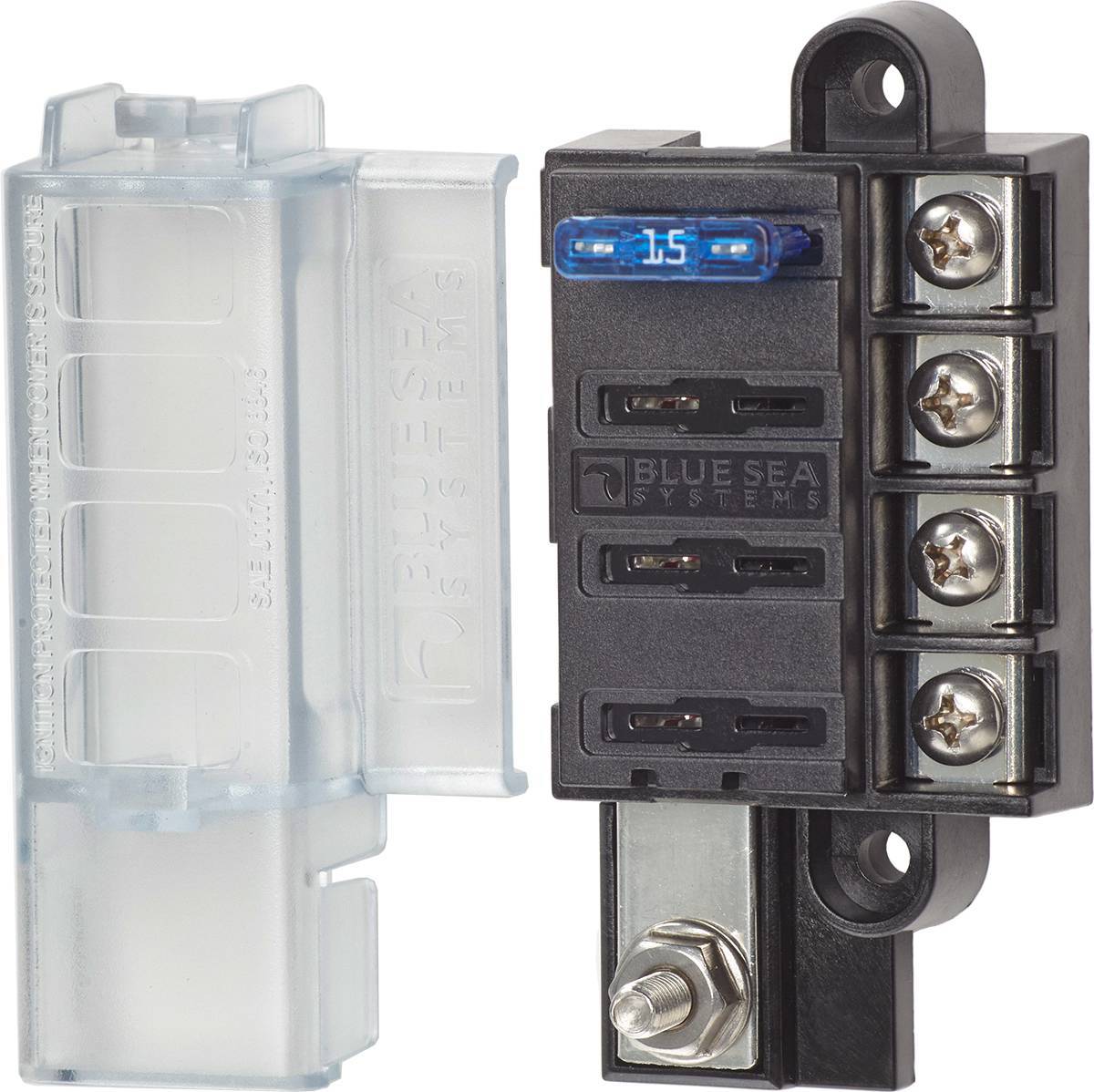

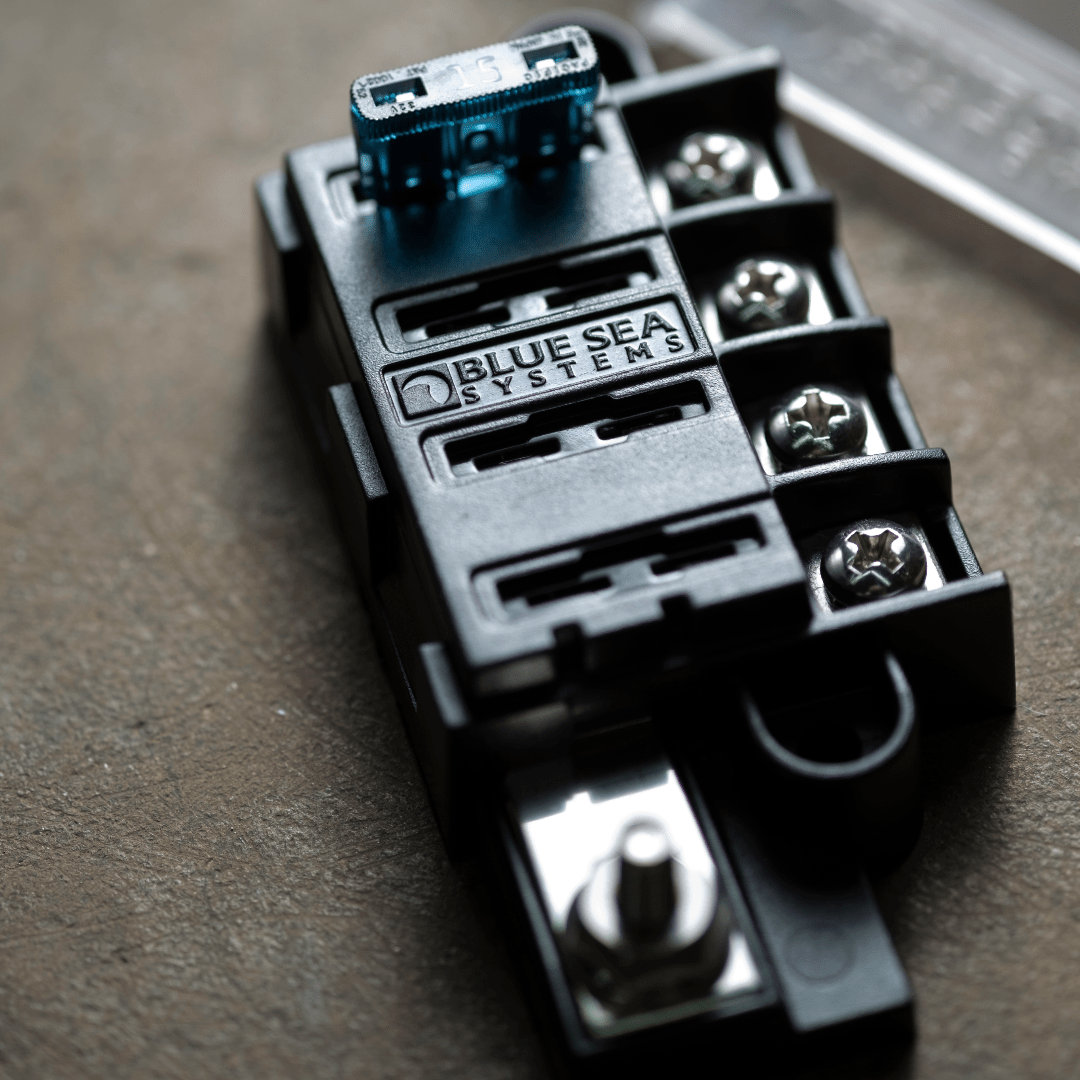

ST Blade Compact Fuse Blocks - 4 Circuits

$33.49 $38.02


Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.
  • Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Single side design allows wire entry from one side to minimize footprint
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Includes 4 write-on circuit labels
  • Fuses sold separately
Specifications
Circuits 4
Maximum Amperage  100A per block
30A per circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Terminal Stud Torque 24 in-lb (2.71 Nm)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Scews with captive star lock washer
Terminal Stud Size #10-32
Weight 0.25lb (0.11 kg)
