Blue Sea Systems | SKU:
7748
SafetyHub 150 Fuse Block
$153.99
$178.56
Unit price /
Unavailable
SafetyHub 150 Fuse Block is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
An ignition protected fuse block with screw termination safe for use on gasoline powered boats

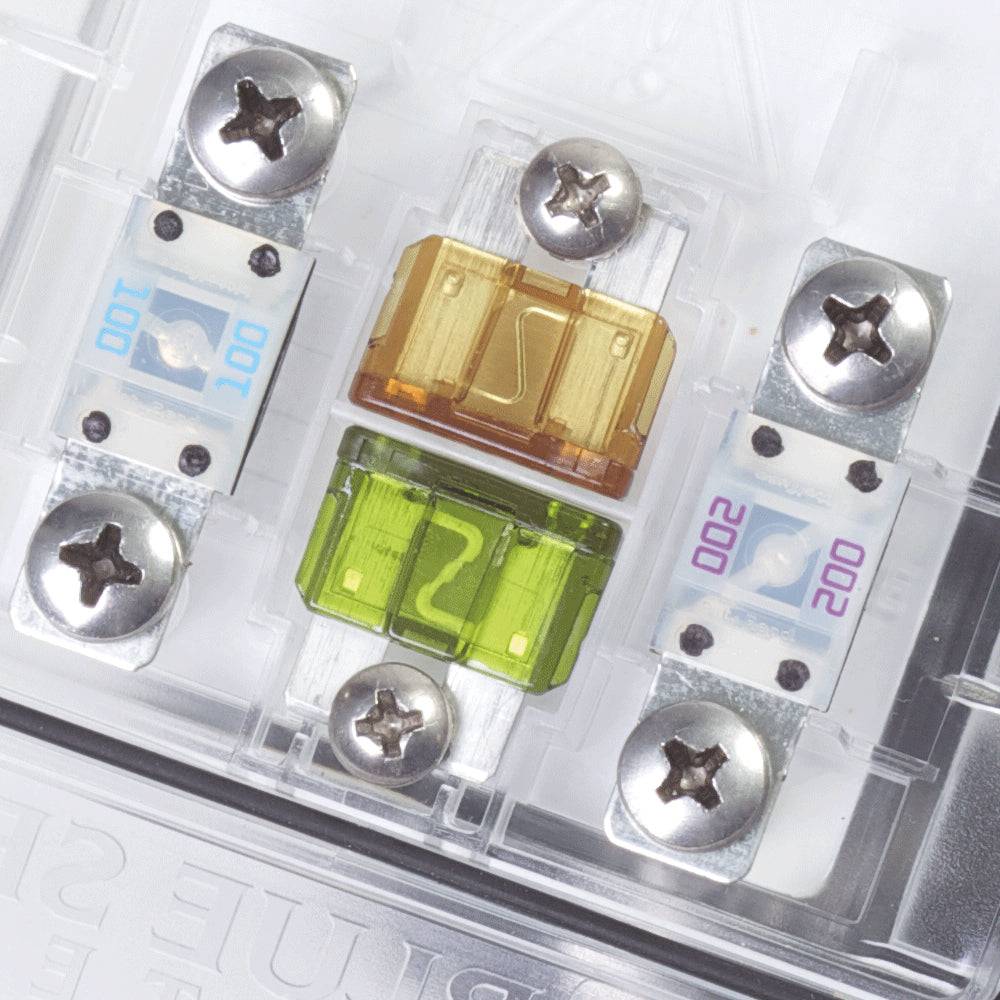

- Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A
- Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights

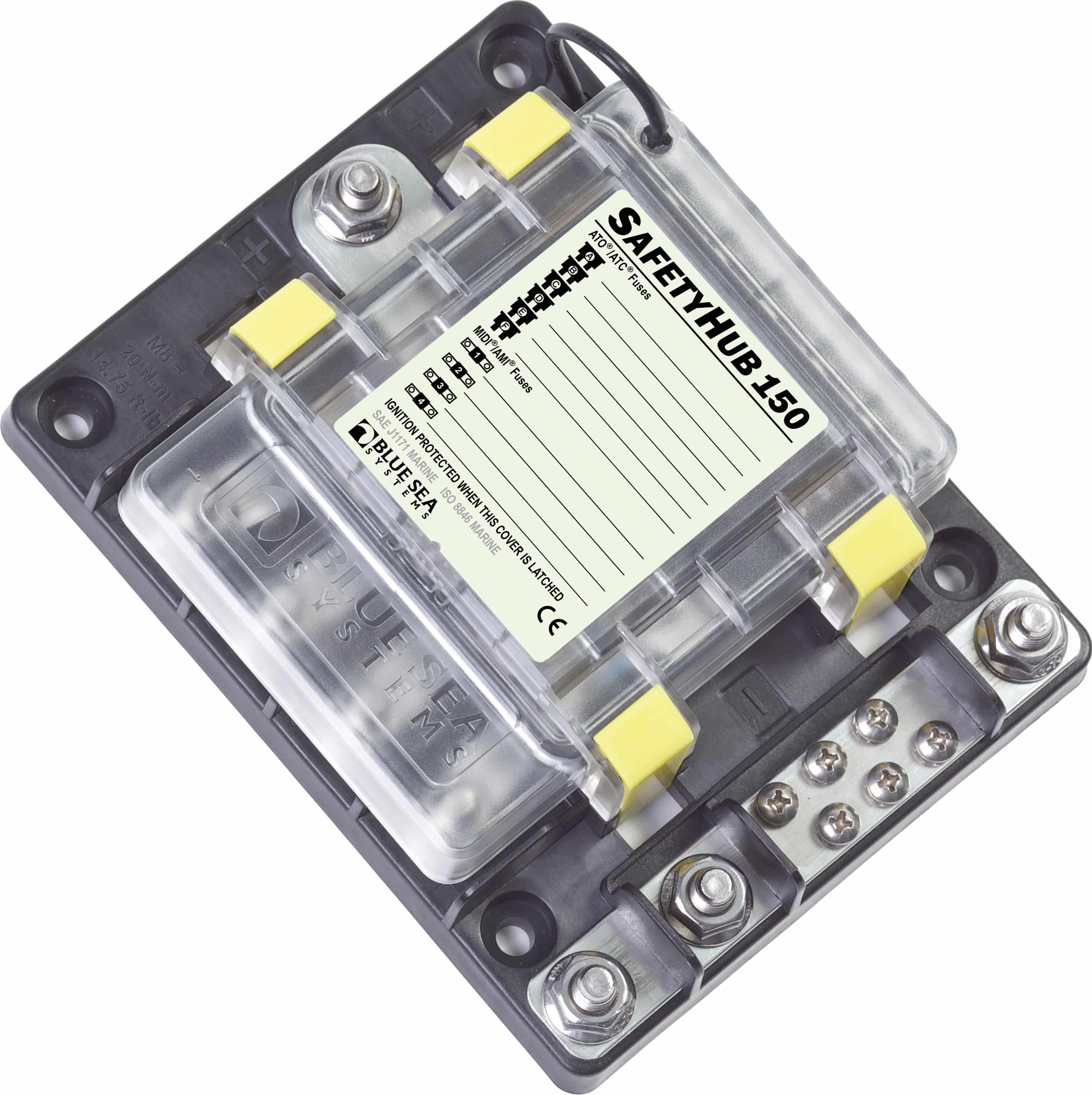

- Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
- Negative bus provides common location for negative connection
- Circuit identification label with write-on capability

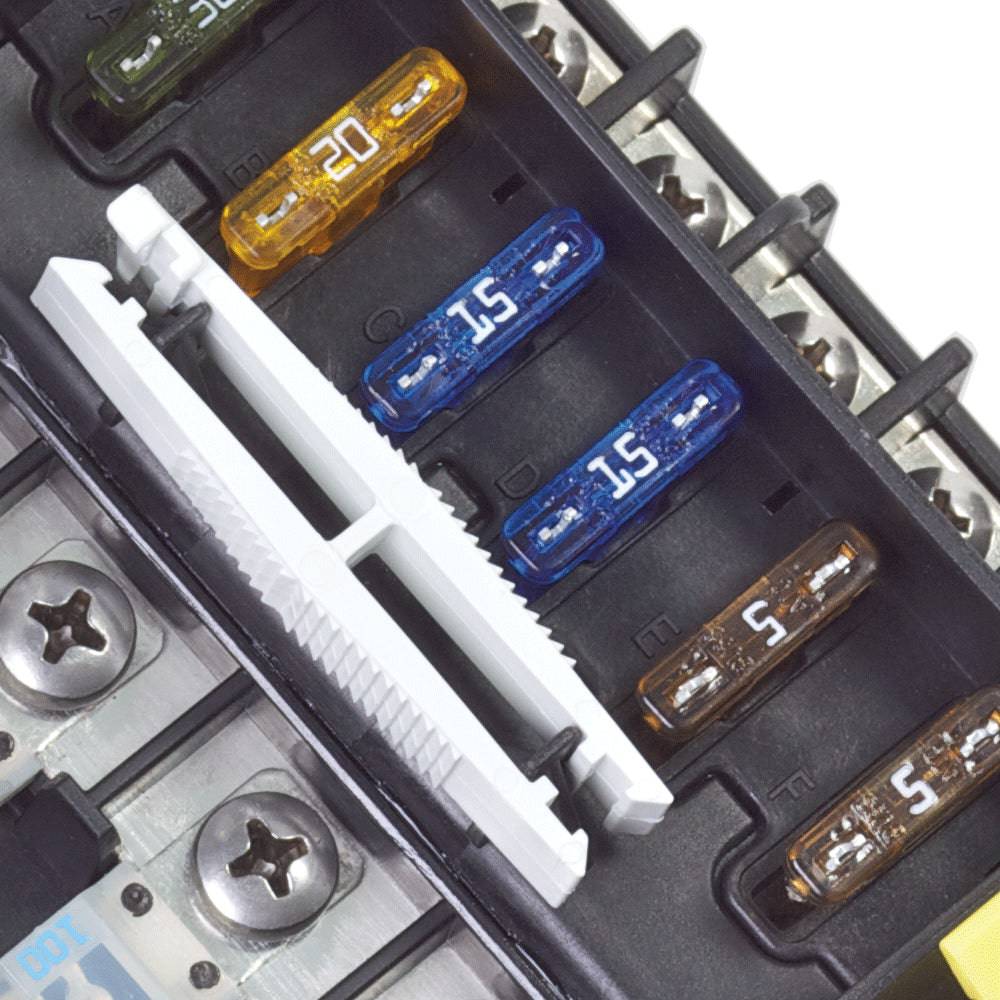

- Fuse puller easily removes ATO® or ATC® Fuses

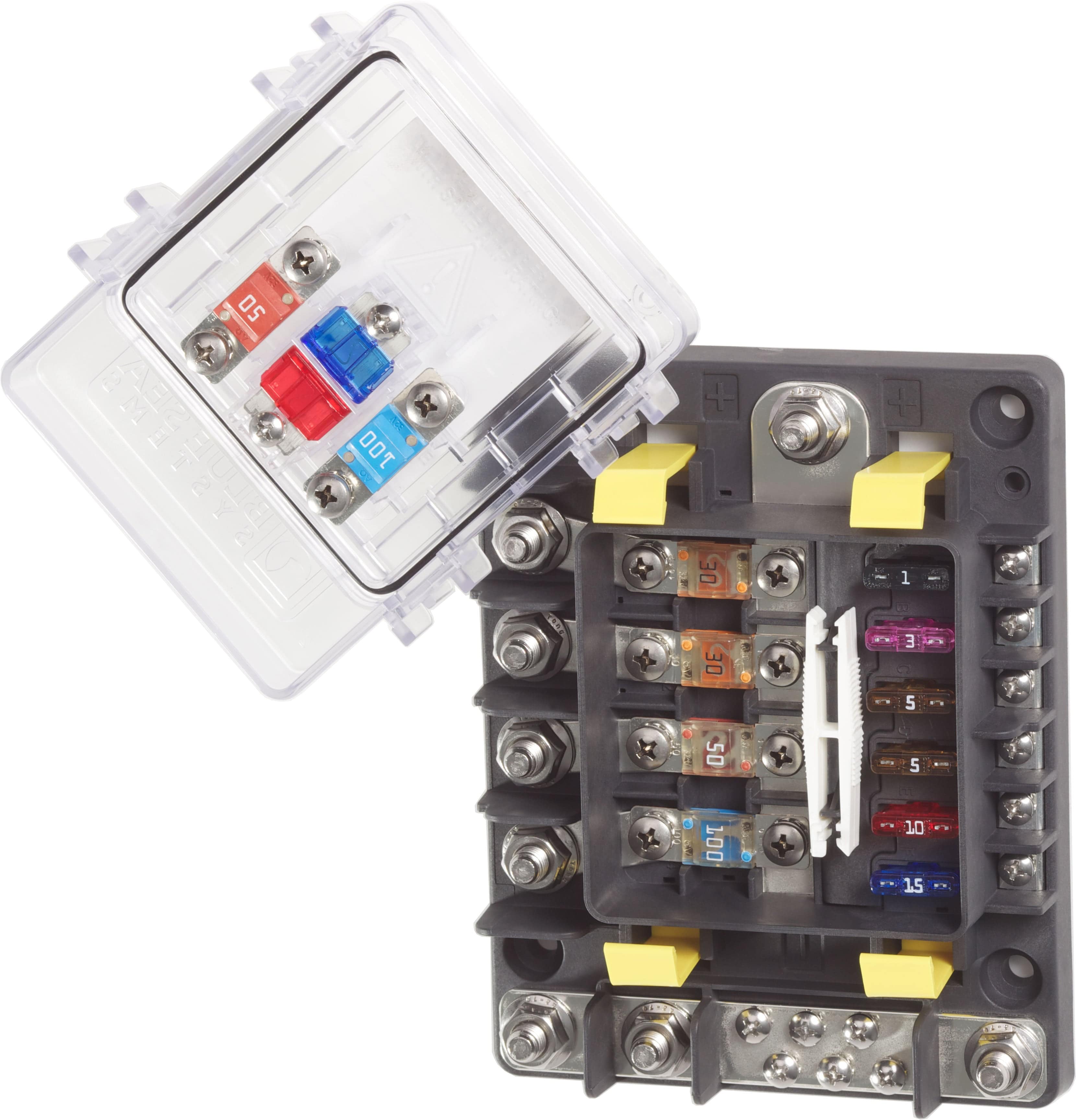

- Cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
- One-piece stainless flange nuts ensure safe and secure connections
- Fuses sold separately
| Specifications | |
|---|---|
| Circuits | 10 |
| Stud Size | M8 x 1.25 |
| Operating Voltage | 12V 24V 32V |
| Amperage Maximum Operating - combined | 200A  350A 600A |
| Recommended Ring Terminal | M8 (5/16") |
| Screw Torque, 8-32 | 18in-lb (2.03 Nm) |
| Screw Torque, M5 | 27in-lb (3.05 Nm) |
| Stud Torque | 180 in-lb (20.34 Nm) |
| Weight | 3.50lb (1.59 kg) |
