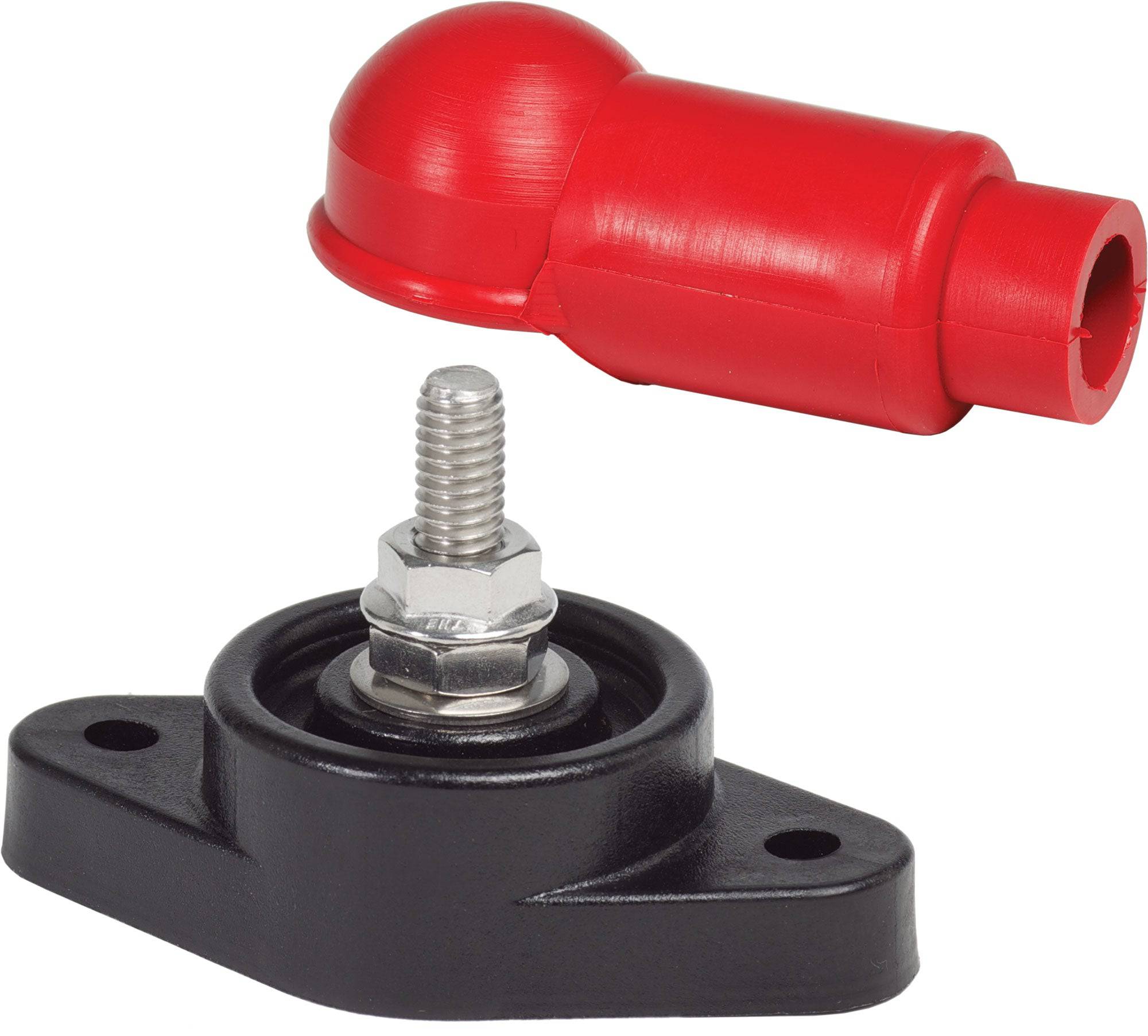

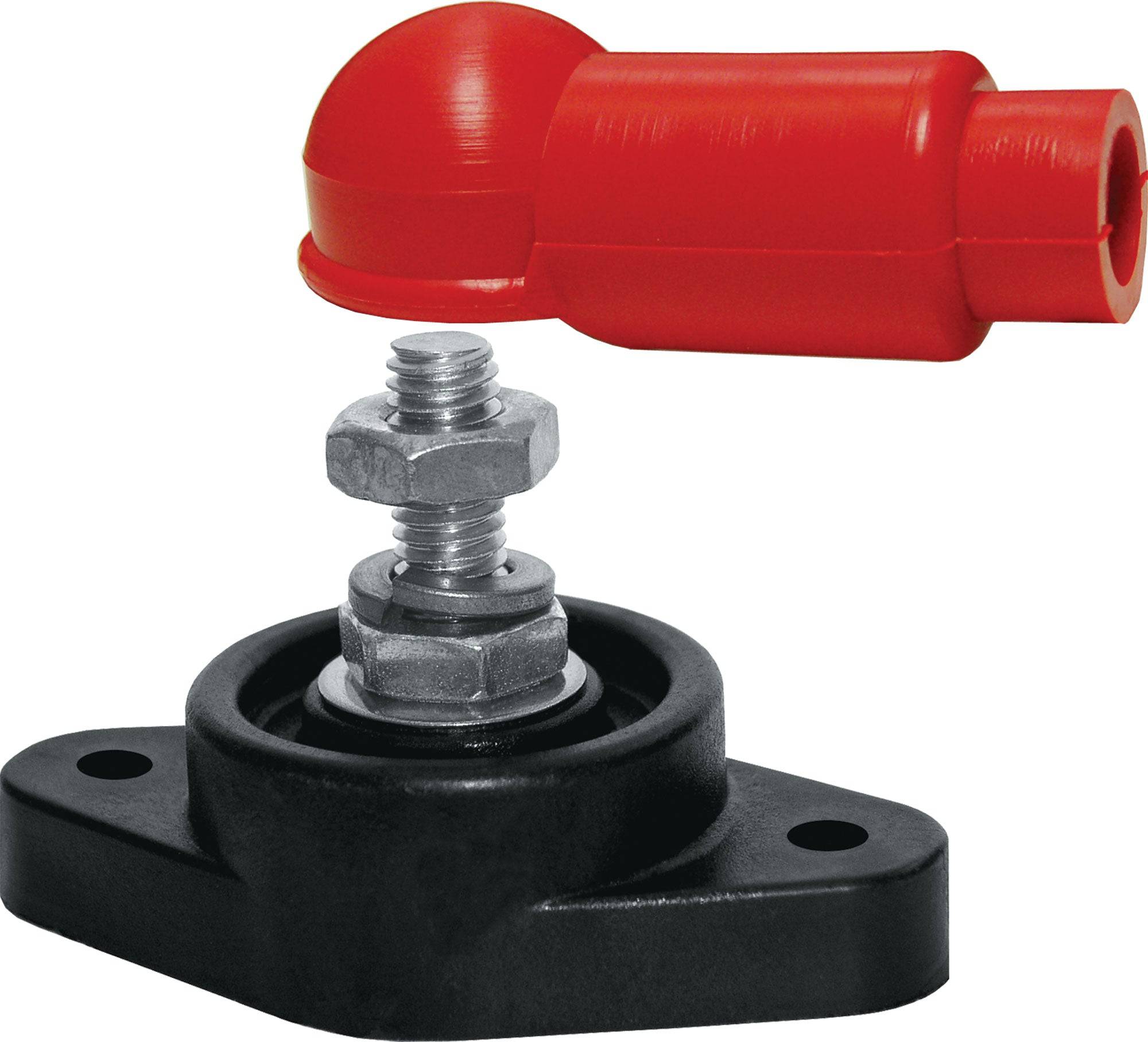

PowerPost
Insulated single stainless steel stud terminates multiple large conductors
- Connects high amperage cables securely
- Includes insulator
| Specifications | |
|---|---|
| Color | Red |
| Maximum Voltage | 48V DC |
| Stud Size | 1/4"-20 |
| Base Material | Reinforced Thermoplastic |
| Recommended Torque | 70 in-lb (7.91 N·m) |
| Weight | 0.21lb (0.1 kg) |
| Weight | 0.20lb (0.09 kg) |
| Specifications | |
|---|---|
| Color | Red |
| Maximum Voltage | 48V DC |
| Stud Size | 5/16"-18 |
| Base Material | Reinforced Thermoplastic |
| Height | 2in (50.8 mm) |
| Weight | 0.23lb (0.1 kg) |
| Weight | 0.24lb (0.11 kg) |
| Specifications | |
|---|---|
| Color | Red |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8"-16 x 7/8" |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Base Material | Reinforced Thermoplastic |
| Weight | 0.27lb (0.12 kg) |
| Weight | 0.27lb (0.12 kg) |
| Specifications | |
|---|---|
| Color | Red |
| Maximum Voltage | 48V DC |
| Stud Size | #10-32 x 5/8" |
| Base Material | Reinforced Thermoplastic |
| Weight | 0.06lb (0.03 kg) |
| Weight | 0.05lb (0.02 kg) |
| Specifications | |
|---|---|
| Color | Red |
| Maximum Voltage | 48V DC |
| Stud Size | 1/4"-20 x 3/4" |
| Base Material | Reinforced Thermoplastic |
| Recommended Torque | 70 in-lb (7.91 N·m) |
| Voltage Rating | 48V |
| Weight | 0.08lb (0.04 kg) |
| Weight | 0.05lb (0.02 kg) |
PowerPost
Sale price$14.99
