Blue Sea Systems  |  SKU: 2300

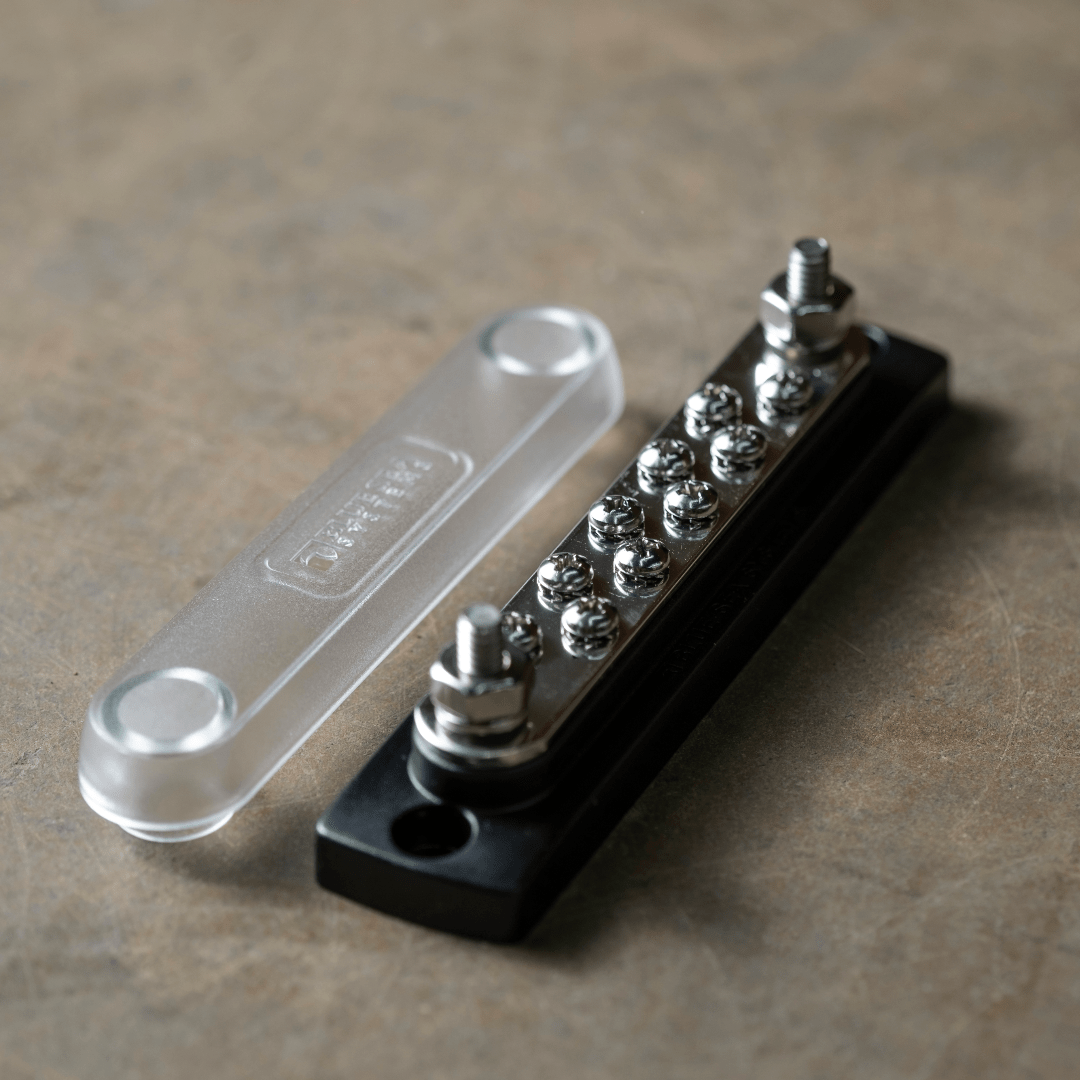

Common 150A BusBar - 10 Gang with Cover

$29.49 $34.87
Shipping calculated at checkout.
  • The industry standard busbar for positive distribution
  • The industry standard busbar for the collection of negative or AC ground circuits
Specifications
Maximum Voltage 300V AC
48V DC
Number of Screw Terminals 10
Number of Terminal Studs 2
Terminal Type 1/4" Stud
#8-32 Screw
Continuous Rating  130A AC
150A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Cover Material Clear Polycarbonate
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Torque 60 in-lb (6.78 Nm)
Weight 0.37lb (0.17 kg)
Weight 0.37lb (0.17 kg)
Common 150A BusBar - 10 Gang with Cover - Blaze Off-Road
Blue Sea Systems

Common 150A BusBar - 10 Gang with Cover

$29.49 $34.87
Specifications
Maximum Voltage 300V AC
48V DC
Number of Screw Terminals 10
Number of Terminal Studs 2
Terminal Type 1/4" Stud
#8-32 Screw
Continuous Rating  130A AC
150A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Cover Material Clear Polycarbonate
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Torque 60 in-lb (6.78 Nm)
Weight 0.37lb (0.17 kg)
Weight 0.37lb (0.17 kg)
