Blue Sea Systems | SKU: 2314

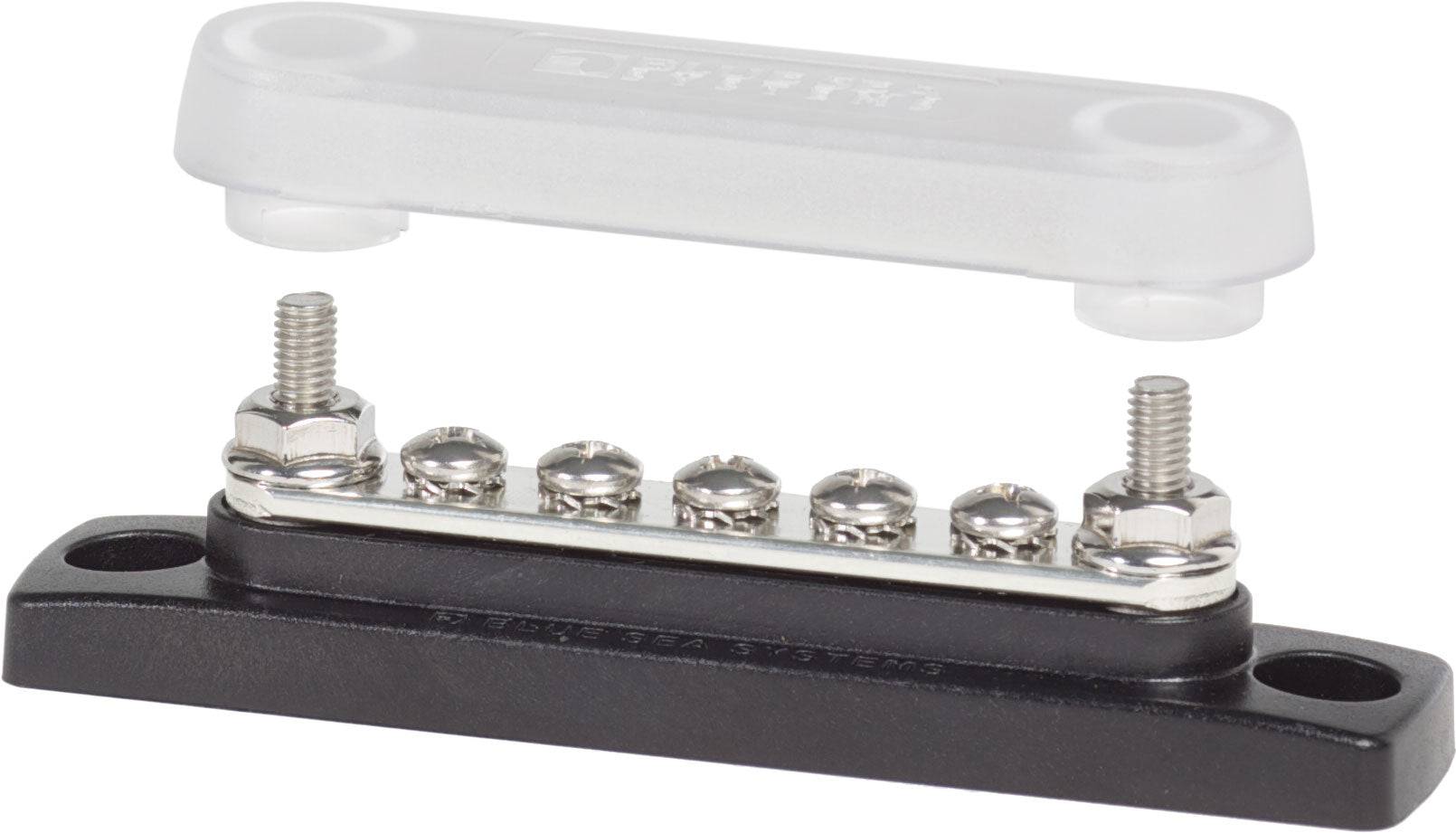

Common 100A Mini BusBar - 5 Gang with Cover

$22.49 ~~$26.63~~

Shipping calculated at checkout.

Specifications
Maximum Voltage	300V AC 48V DC
Number of Screw Terminals	5
Number of Terminal Studs	2
Terminal Type	#10-32 Stud #8-32 Screw
Continuous Rating	100A
Base Material	UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material	Tin-Plated Copper CDA 110/ UNS11000
Cover Material	Clear Polycarbonate
Screw Terminal Torque	15 in-lb (1.69 Nm)
Stud Torque	18 in-lb (2.03 Nm)
Weight	0.18lb (0.08 kg)

Specifications

Maximum Voltage

300V AC
48V DC

Number of Screw Terminals

Number of Terminal Studs

Terminal Type

#10-32 Stud
#8-32 Screw

Continuous Rating The maximum current a switch is designed to conduct for an indefinite period.

Base Material

UL 94-V0 Rated, Glass Reinforced Thermoplastics

Bus Material

Tin-Plated Copper CDA 110/ UNS11000

Cover Material

Clear Polycarbonate

Screw Terminal Torque

15 in-lb (1.69 Nm)

Stud Torque

18 in-lb (2.03 Nm)

Weight

0.18lb (0.08 kg)
