Blue Sea Systems  |  SKU: 7720

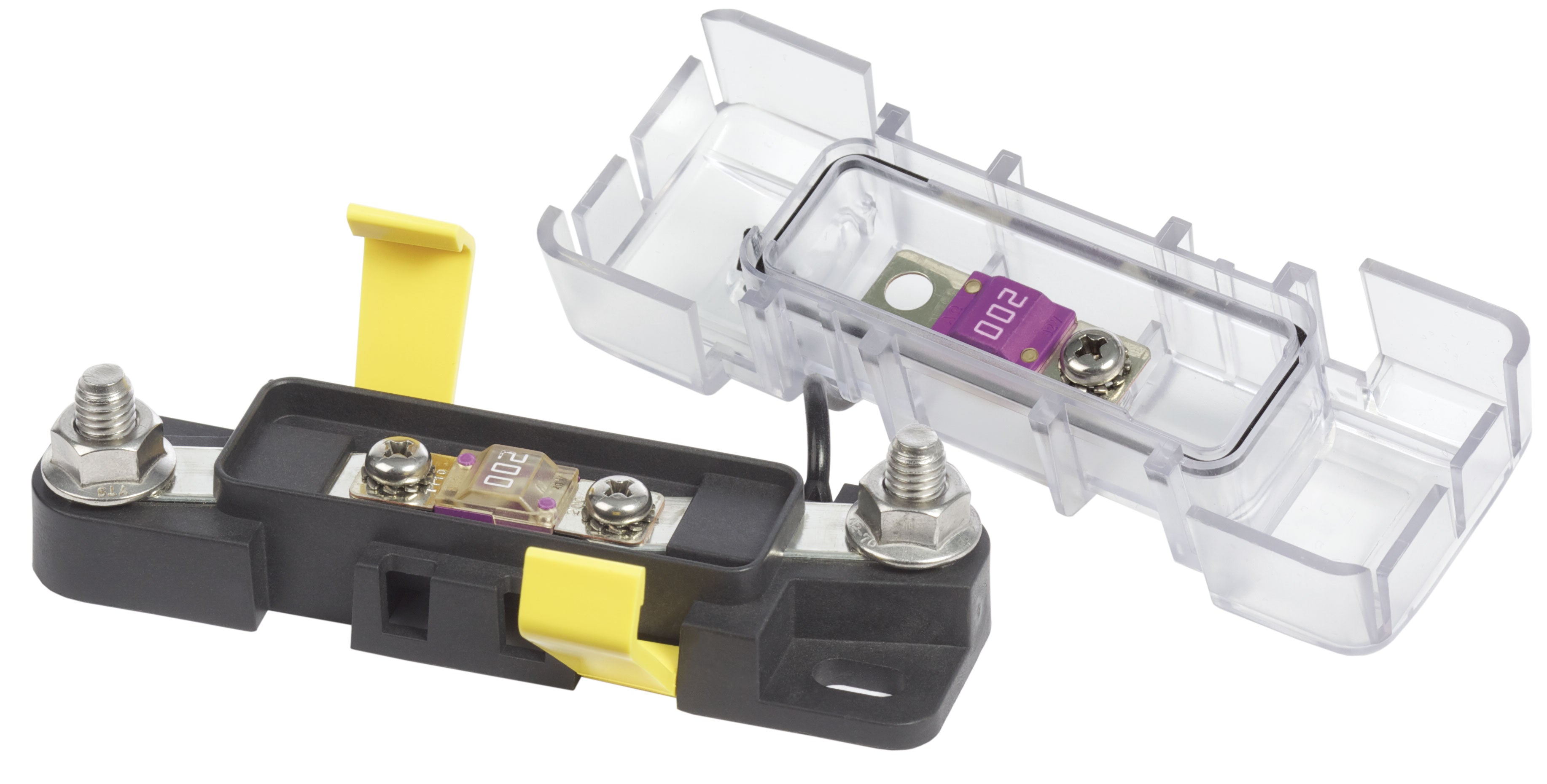

AMI / MIDI Safety Fuse Block

$35.99
Shipping calculated at checkout.
  • Ignition protected for installation aboard gasoline or diesel powered boats
  • Sealed cover protects fuses from the harsh marine environment
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • 200A maximum with 4/0 cable
  • Accepts Blue Sea Systems Square Format standard or custom label
  • Fuses sold separately
Specifications
Maximum Amperage  200A
Maximum Voltage 32V DC
Stud Size M8 x 1.25
Fuse Screw M5 x 0.8
Recommended Screw Torque 27 in-lb (3.05 N·m)
Recommended Stud Torque 120 in-lb (13.56 N·m)
Ring Terminal Size M8 (5/16")
Weight

0.15lb (0.07 kg)
