Complete Power System Installation Instructions
Vehicle Compatibility
✔ Toyota LC250 i-FORCE MAX (Hybrid)
✔ Toyota 4Runner i-FORCE MAX (Hybrid)
✖ Not compatible with non-hybrid models
Tools Required
- Trim removal tool
- 10mm, 12mm, 13mm sockets/ Wrenches
- Drill + 1 - 5/16” hole saw (drill bit)
- Cable tie cutters (flush cuts)
Installation Time
Skill Level: Advanced
Install Time: 2-4 hour install time, based on skill level.
System Overview
- The 12-volt battery is located behind the left side trim panel in the rear hatch area of the SUV.

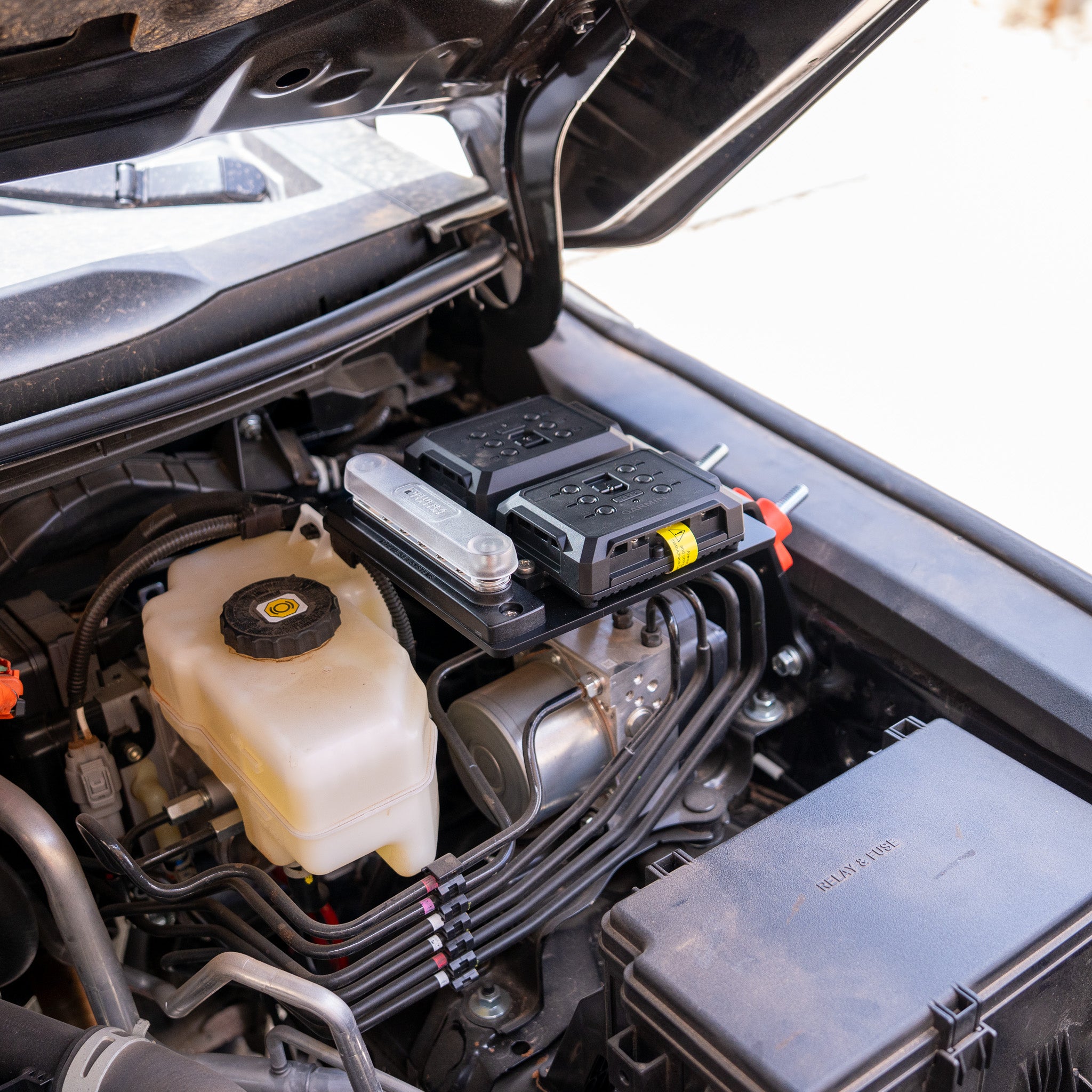

- Power system mounts under the hood on the driver's side
- Cables are routed internally using factory channels and clips
- Solid copper core pass-through units mount to the driver's side rear wheel well in front of the 12-volt battery.

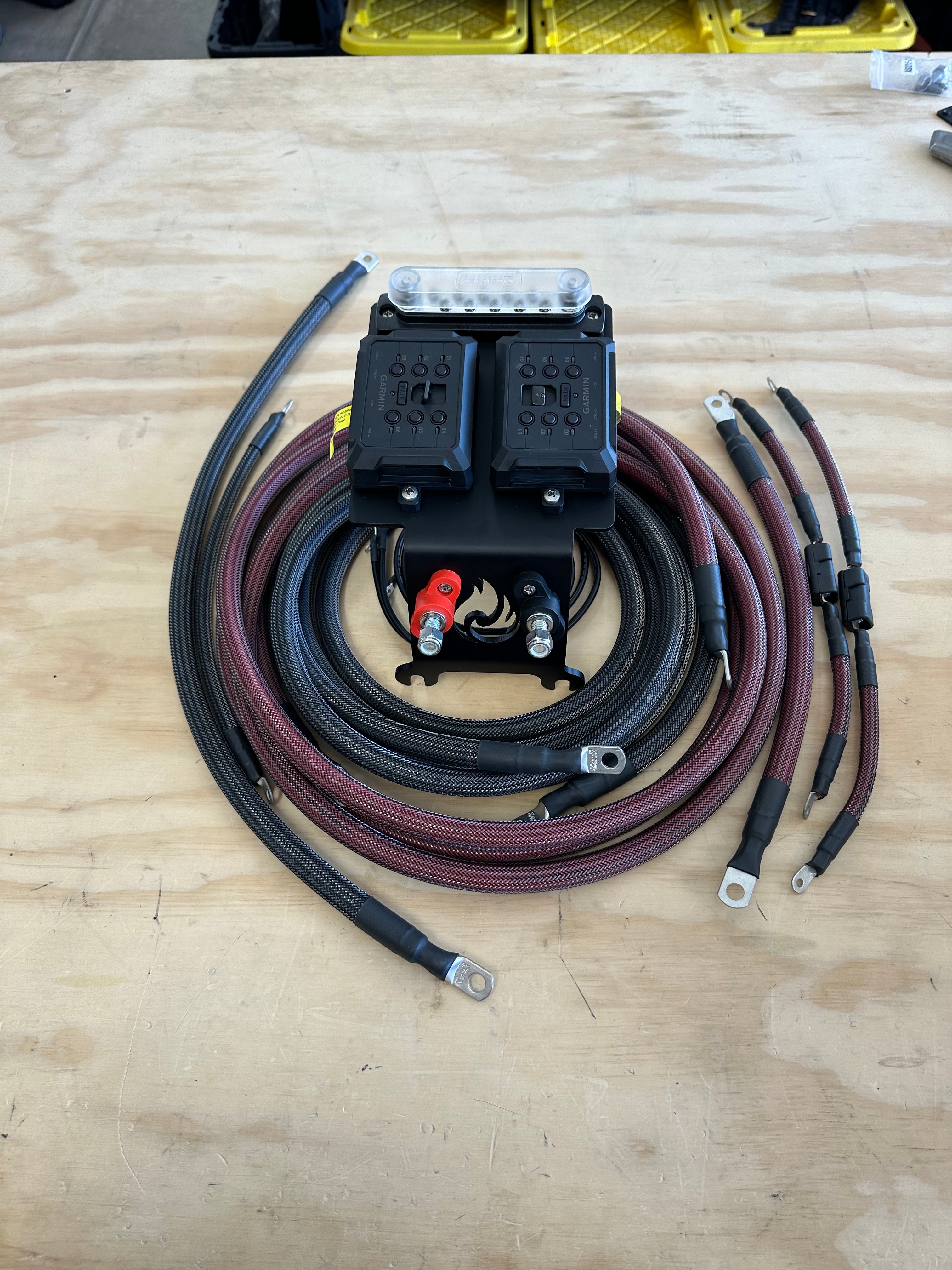

- Billet battery terminal (+) is included with a terminal fuse to protect the entire system
Downloadable Instructions
COMING SOON
Install Questions? Reach out!
Let us know what you have questions about, or what you may be struggling with. We are always happy to help!
