Complete Power System Installation Instructions
Vehicle Compatibility
✔ 2022+ Toyota Tundra i-Force MAX (Hybrid only)
✖ Not compatible with non-hybrid models
Tools Required
- Trim removal tool
- 10mm, 12mm, 13mm sockets/ Wrenches
- Drill + 1 - 5/16” hole saw (drill bit)
- Cable tie cutters (flush cuts)
Installation Time
Skill Level: Advanced
Install Time: 2-4 hour install time, based on skill level.
System Overview

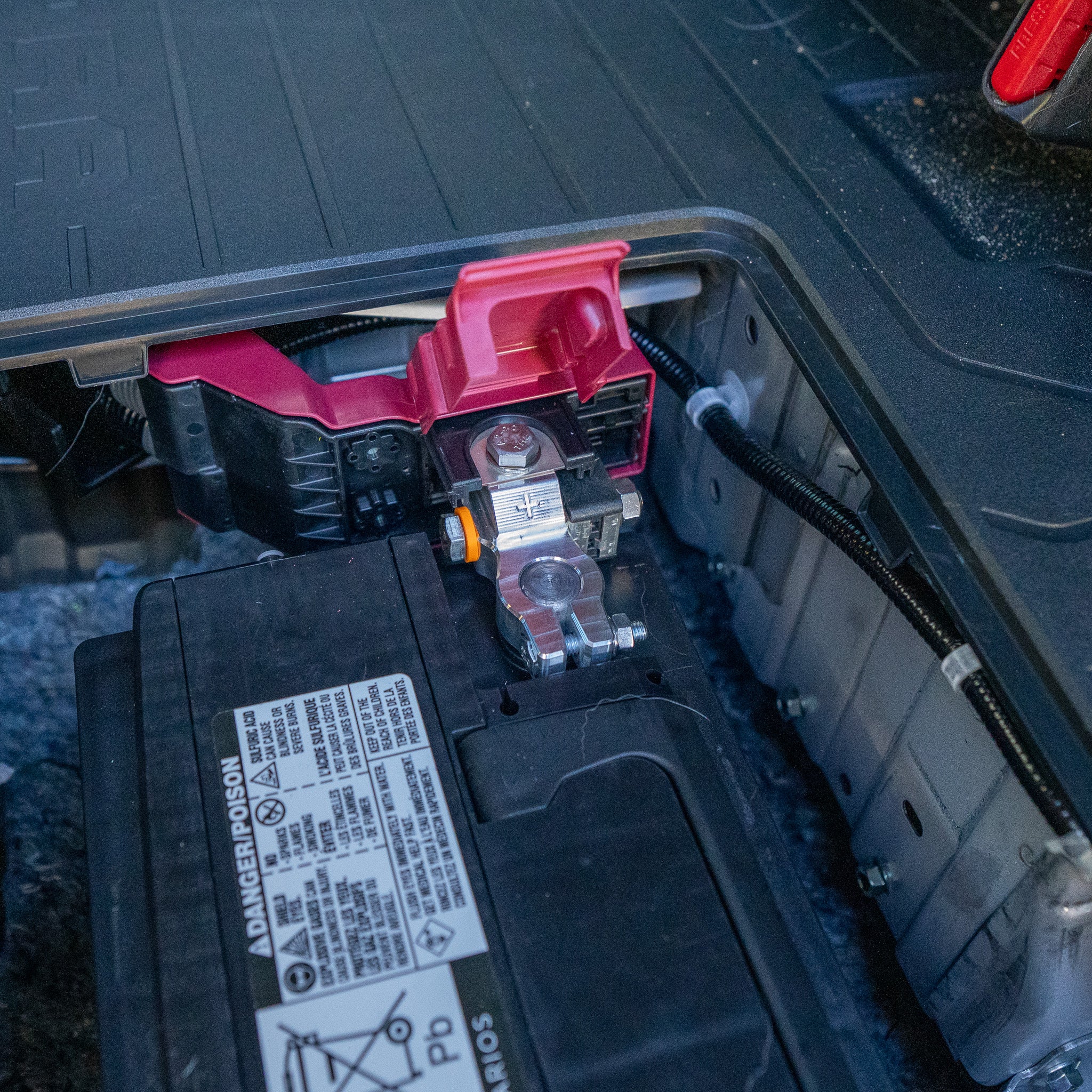

- The 12V battery is located under the driver-side rear seat

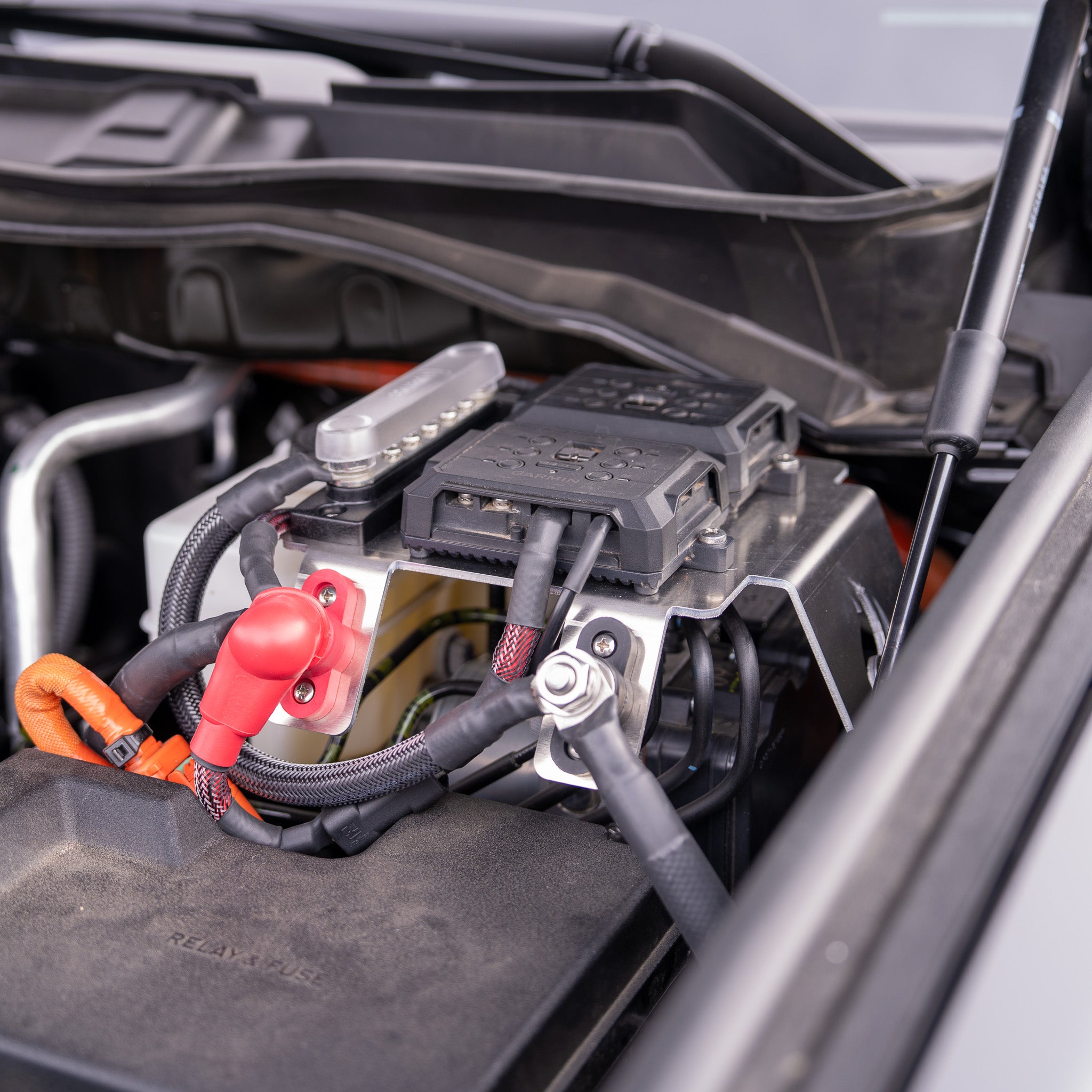

- Power system mounts under the hood on the driver's side
- Cables are routed internally using factory channels and clips

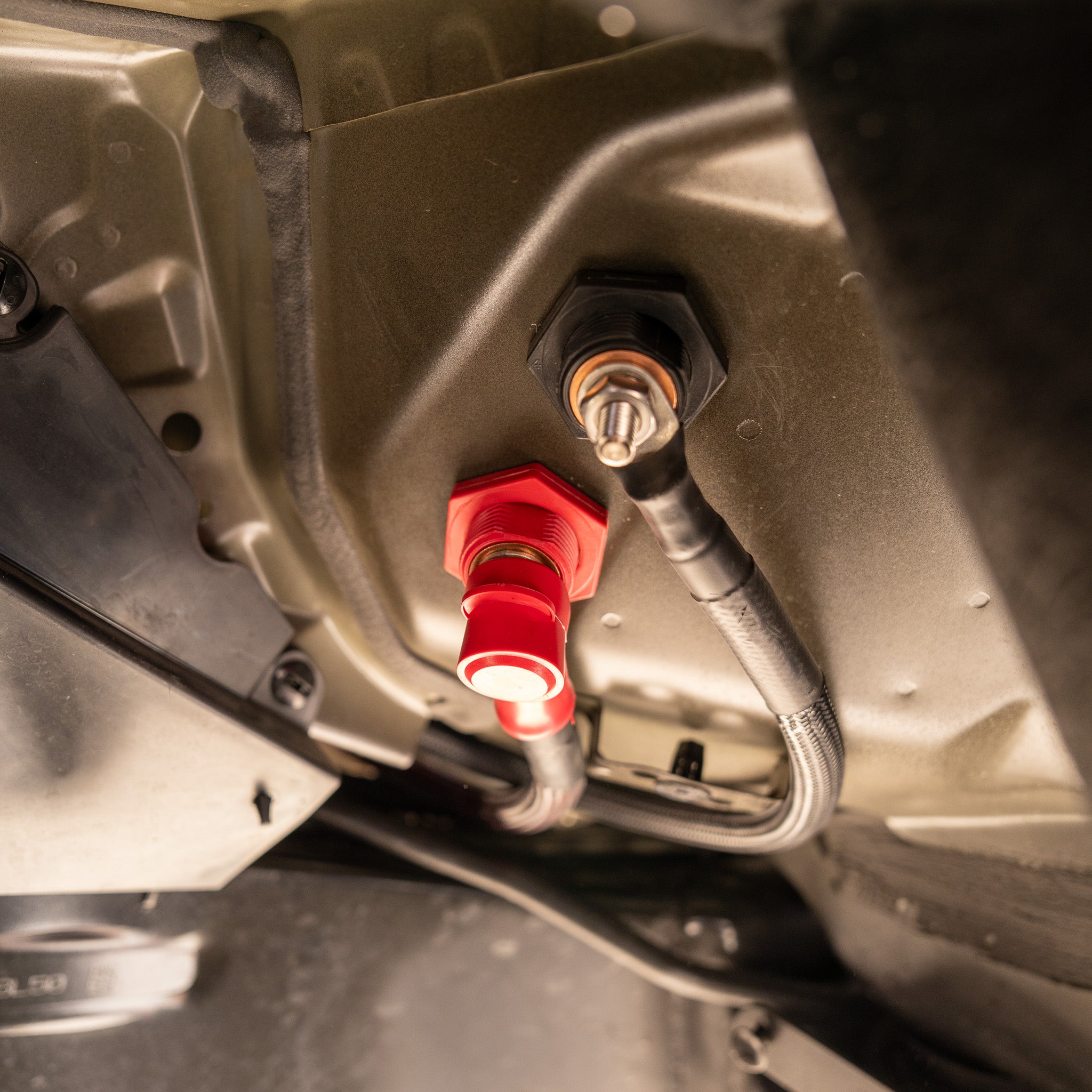

- Solid copper core pass-through units mount to the left of the driver's feet in the lower firewall
- Billet battery terminal (+) is included with a terminal fuse to protect the entire system
